Product Details:
|
| Dimension: | 65000x1500x1500mm | Driving Mode: | Chain |
|---|---|---|---|
| Electrical Control System: | PLC Control System With Famous Brand | Main Power: | 110kw |
| Product: | Glazed Tile Roll Forming Machine | Working Speed: | 6-10pcs/min |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||

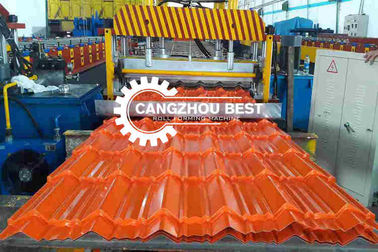

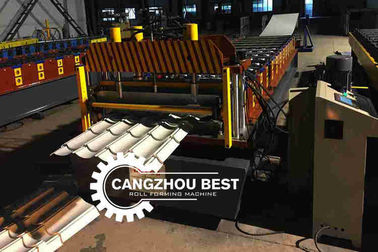

Colorful Stone Coated Roof Tile Roll Forming Machine With 6pcs/Min Speed
Description:
| No | Item | Description |
| 1 | Auto bottom glue spraying section |
Appearance size:4000*1000*2000 Unit:mm Driving section:3KW Excitation motor or frequency speed regulation (AS per customers’requirements ) Automatic pressure spray tank:1set capability:200kg Range:0.6～1Mpa Automatic glue machine motor: Servo motor, Power:750w, plc Automatic spray gun:4 set(spare parts) Dust collecting fan: 1set power:200w Damp proof lamp:1pc power:100w Conveying device:Chain reciprocating Air compressor:1set power:7.5kw Dust control of axial flow fan:1set power: 200w Agitator: 1set power:1.5kw |
| 2 | Auto stone coated section |
Appearance size:3500×1000×1500 Unit:mm Framework: Steel welding Conveying device:Chain reciprocating Automatic sand hopper: 1set capability:200kg Bucket lift:1 set Manual sandblast gun:4sets |
| 3 | The first time drying section |
Appearance size:25000×1000×1200 Unit:mm Framework: Steel welding Frame type thermal insulation wall: 1.2mm cold steel with Rock wool Automatic temperature controller:4set Range:0°～160° Infrared heating tube: 30pcs Power:30kw Conveying device:Chain reciprocating Air cooling device:1 set Power:200w |
| 4 | Auto face glue spraying section |
Appearance size:3000×1000×2000 Unit:mm Framework: Steel welding Damp proof lamp:1pc Power:100w Automatic pressure spray tank:1set capability:200kg Range:0.6～1Mpa Conveying device:Chain reciprocating Automatic spray gun:4 set(spare parts) Manual patch glue gun:4 set Dust control of axial flow fan:1set power: 200w Automatic glue machine motor: Servo motor, Power:750w |
| 5 | The second time drying section |
Appearance size:30000×1000×1200 Unit:mm Framework: Steel welding Frame type thermal insulation wall: 1.2mm cold steel with Rock wool Automatic temperature controller:4set Range:0°～160° Infrared heating tube: 30pcs Power:30kw Conveying device:Chain reciprocating Air cooling device:1 set Power:200w |
Specifications:
| No. | Item | Description |
| 1 | Working speed | 6-10pcs/min |
| 2 | Main power | 110kw |
| 3 | Electrical control system | PLC control system with famous brand |
| 4 | Dimension | 65000x1500x1500mm |
| 5 | Driving mode | Chain |
| 6 | Temperature control | Automatic and constant temperature |
| 7 | Working time | Can be 24 hours |
| 8 | Workers | 7 only |
| 9 | Time to dry | After come out from machine can be packed at once |
| 10 | Mold | Can be changed |
Competitive Advantage:
Save electric, easy operation, stable, less labour, and quick change.

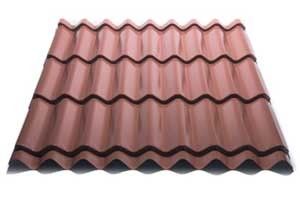

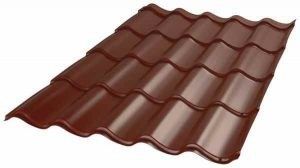

profile drawing
