Product Details:
|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
|---|---|---|---|
| Weight: | According To The Model | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Production Capacity: | 10-15m/min | Tile Type: | C Z Purlin Roll Forming Machine Light |
| High Light: | purlin making machine,purlin forming machine |
||
1.5-3.0mm Galvanized Steel C Purlin Roll Forming Machine With Gearbox Drive
Technical Parameter
1. Products specification: C80-300. thickness: 1.5-3mm. Yield strength: 250Mpa max.
2. Running speed: 0-12m/min.
3. Main shaft material: 45# steel, Q&T treatment
4. Main axis diameter: 75mm
5. Roller material: GCr15 bearing steel, Qunching heat treatment, surface black finish. Rigidity:HRC58-62.
6. Roller groups: 15 groups main rollers
7. Levelling roller: 7 rollers levelling device
8. Main motor power: 11KW;
9. Hydraulic station motor power: 5.5KW
10. Punching station: 2 punch device
11. Electrical control system: Whole line adopted PLC control, Panasonic PLC.
12. Cutting method: Hydraulic powered, automatically cut to length after roll forming
13. Cutting mold material: Cr12 quenching treatment
14. Uncoiling: by 5T Manual uncoiler
15. Machine dimension: 8m L X 0.88 m W X 1.0 m H
16. Machine weight: about 8 tons.
Working Flow
Decoiler—→level device—→main forming machine—→straightening—→hydraulic Punching —→hydraulic cutting—→ run out table
Machine List
| S.N | Equipment name | Quantity |
| 1 | 3T manual uncoiler | 1 set |
| 2 | Levelling device | 1 unit |
| 3 | Punching station (including punching mould) | 1 unit |
| 4 | Main roll forming machine | 1 set |
| 5 | Main drive | 1 unit |
| 6 | Cutting unit | 1 set |
| 7 | Hydraulic station | 1 set |
| 8 | Control system ( including control cabinet) |
1 set |
| 9 | Out put rack | 1 set |
| 10 | Cutting mould | 3 sets |
|
|

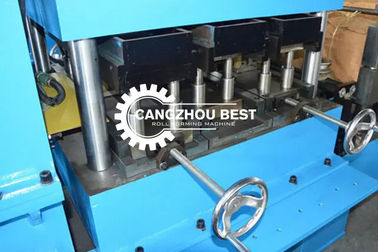

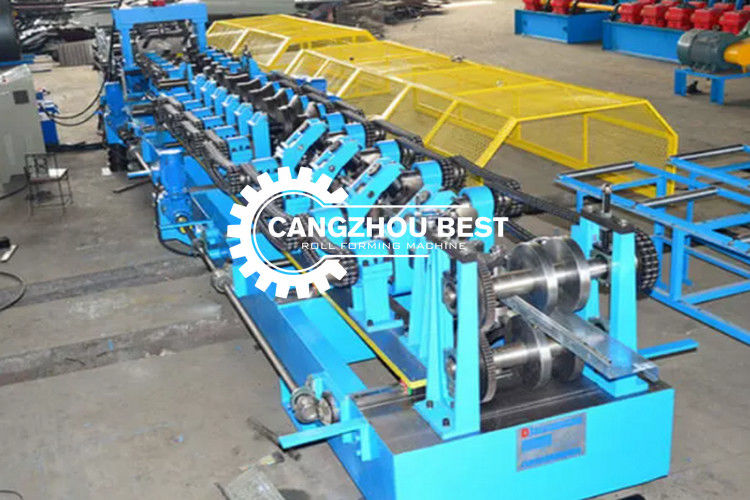

Pictures of the product
