Product Details:
|
| Roller Material: | 45# Forged Steel | Power(W: | 4+4KW |
|---|---|---|---|
| Suitable To Process: | Color Steel Plate | Control System: | PLC Control |
| Warranty: | 2 Years | ||
| High Light: | steel stud roll forming machine,2.0mm metal stud machine |
||

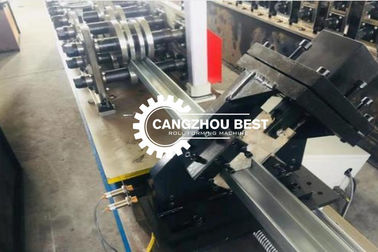

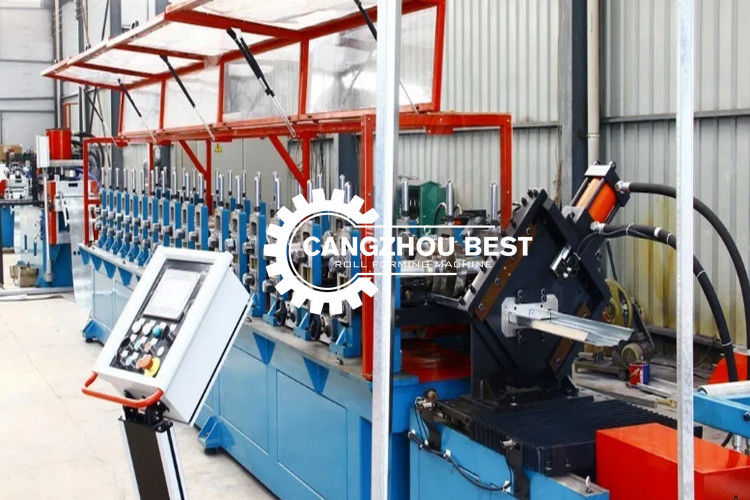

Full Auto Metal Stud And Track Roll Forming Machine 1.0-2.0mm Thickness Material
| Material |
| Material Thickness(&):1.0-2.0mm, Material Width: about 369mm for C shape and 349mm for U shape |
| Applicable material: Galvanized Steel Coils, Hot Rolled Coils, Cold Rolled Coils, yield strength 245Mpa or 550Mpa |
| Machine Components |
| 1)Manual Decoiler: one set |
| Max. feeding width: 500mm, coil ID range 470mm±30mm |
| Capacity: Max. 3Ton |
| 2) Cold Rolling Mills: |
| Rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) |
| Motor Driving, Gear chain transmission, 14 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and leveling) |
| Main Motor=7.5KW, Frequency speed control |
| Forming speed of approx.12-18m/min |
| 3)Hydraulic Cutting device |
| Post cut, stop to cutting, use the same hydraulic motor drive |
| hydraulic motor: 5.5KW, Hydraulic pressure range: 0-12Mpa |
| Cutting tool material: Cr12, Heat treatment |
| 4)PLC Control System(Touch screen brand: Taiwan WEINVIEW, Inverter brand: Finland VOCAN/Denmark Danfoss, Encoder brand: Japan Koyo) |
| Control the quantity and punching, cutting length automatically |
| Combined with: PLC, Inverter, Touch Screen, Encoder, etc |
| Cut-to-length tolerance≤±1mm |
| Control Voltage 24V |
| 5) Exit Rack Un-powered, two units |
2. Machine Features of Full Automatic Good Quality CU Purlin Roll Forming Machine
1. Produce different sizes without changing rollers or spacers.
2. No need changing cutter for different sizes.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
5. This machine can produce SCOTTSDALE style Joists,
but with much higher production speed to catch your project time.
1. Specifications of C89 Light Steel Frame CAD Roll Forming Machine for Prefabricated House
1)Main Techincal Data:
| Size | 3700*800*1100mm |
| Weight | 4000KGS |
| Main Servo Motor Power | 5.5KW |
| Hydraulic Motor Power | 5.5KW |
| Forming Steps | 9 steps for reshaping |
| Processing Speed | About 80 Square Meter Per Day |
| Voltage | 380V/50HZ/3PH |
| Lip of C Profile | 9mm |
| Tolerence Of Forming | 0.75mm |
| Forming Thickness | 0.8mm -1.2mm |
| Height | 38mm |
| Width | 89mm |
2) Main Accessories:
(1) .Main Forming Machine;
(2) .Hydraulic Strip Uncoiler;
(3) .Hydraulic Punching Device;
(4) .Hydraulic Motor System;
(5) .IPC Computer Controlling System with Product Software;
(6) .Hydraulic Forming Cutter;
(7) .Automatic Printing Device;
(8) .Vertex BD Design Software;
(9) .Run Out Table;
(10) .Tools;
(11) .Operation Manual.
| Standing Cold Light Keel Roll Forming Machine | ||
| Items | Specifications | |
| Material of coil | Material Width | 120-300mm |
| Material Thickness | 0.3-3.0mm | |
| Uncoiler | 3 tons manual | |
| Forming system | Rolling Speed | 10-30m/min |
| Roller Stations | 12 stations up to final design | |
| Roller Material | alloy steel GCr15 | |
| Shaft DIA | D70mm | |
| Main Motor Power | 7.5kw | |
| Hydraulic cutting Power | 4kw | |
| Cutting system | Material Of Cutting | Gcr12 with quench treatment |
| Hardness | HRC55-58 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase |
| customized | ||
| Control System | PLC (Panasonic) | |
| Way Of Drive | chain | |
