Product Details:
|
| Name: | Aluminum Zinc Plating Double Layer Sheet Metal Roof Machine PLC Control 380V50HZ Frequency | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | 1250mm Roofing Sheet Roll Forming Machine,550 mm Roofing Sheet Roll Forming Machine |
||

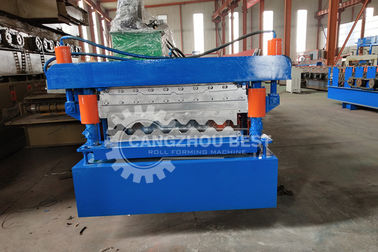

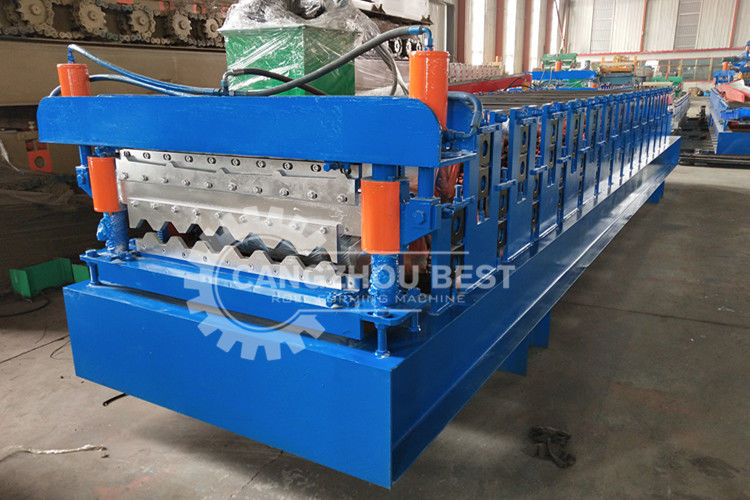

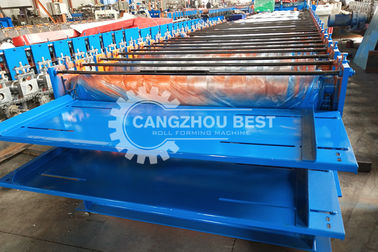

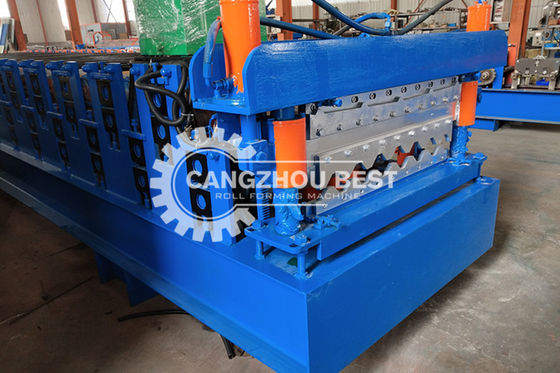

Aluminum Zinc Plating Double Layer Sheet Metal Roof Machine PLC Control 380V50HZ Frequency
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Control System | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
Max. Width: 1250mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000kgs
Type:Manual Or Hydraulic
Roll Forming Machine
| Forming stations | 13-22 stations(according to the profiles) |
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, |
| Machine spacers | CNC lathing in high-precision |
| Machine bearings | China Haerbin bearing or SKF international bearing(option) |
| Driving system | 1 inch chain or gear box(option) |
| Machine power | 3kw-11kw(according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min(option) |
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutter Device:
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Power:3lw
Hydraulic System:
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.
Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
Output Table
No power type
Length: 2m
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Our Service
Pre-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
After-Sales-Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Other Product
Roof sheet machine, roof tile machine, ridge cap machine, double layer machine, c z purlin machine, highway guardrail machine, cable tray machine, water tube machine,decking sheet machine, roller shutter door machine, door frame machine, ceiling drywll machine and so on.
FAQ:
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
BEST MACHINERY is ALIBAB's Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
