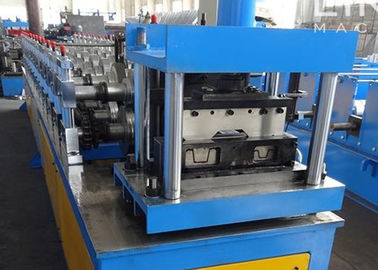

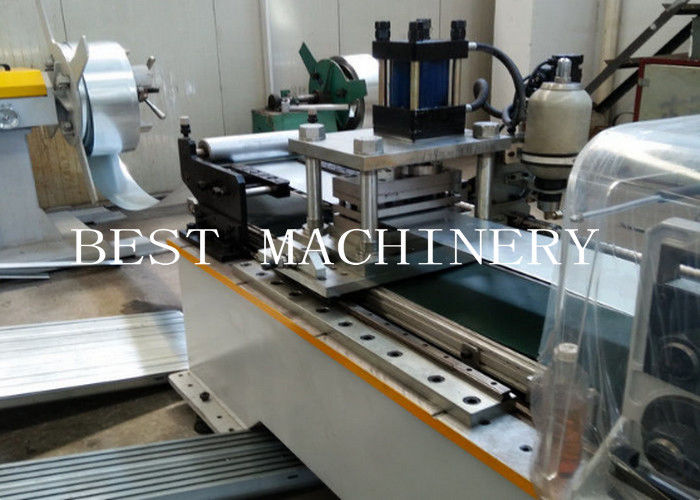

Product Details:
|
| Product Name: | Metal Light Gauge Omega Profile Steel Keel Customized Roll Forming Machine | Control System: | PLC |
|---|---|---|---|
| Cutting Type: | Flying Saw | Warranty: | 2 Years |
| Lifetime: | 10years | Roller Material: | Cr12 Mov |
| Shaft Material: | 45#steel | ||
| High Light: | metal stud and track roll forming machine,steel stud roll forming machine |
||
Our Machine Advantage
1.Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.
Machine Components
| Name | Quantity(set) |
| De-coiler | 1 |
| Feeding guiding Device | 1 |
| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | 16mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Working conditions | |
| 1.Machine size | 10m x 1.2m (L XW) |
| 2.Working size | 20m x 2.5m (LXW) |
| 3.Power supply | 8.5kw |
| 4.Frequency | 50-60HZ |
| 5.Wires/cables | 4-6mm²(length according to workshop) |
| 6. Labor cost | 2 workers |
| 7. Tools | Spanners and screwdriver |
| 8.Lift device | 3-5t forklift or crane |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
