Product Details:
|
| Thickness Range: | 0.3-0.7mm | Material Stress: | 235MPa 345MPa And 550MPa. |
|---|---|---|---|
| Roller Material: | No.45steel | System: | PLC Control Automatic System |
| High Light: | steel stud roll forming machine,metal stud and track roll forming machine |
||

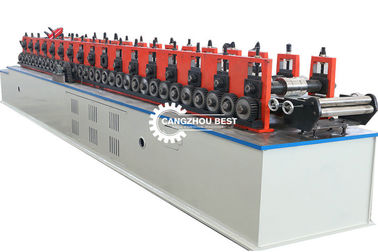

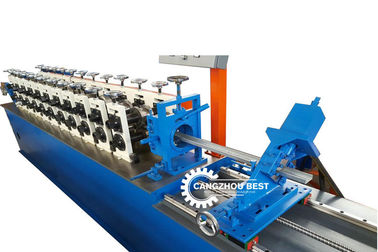

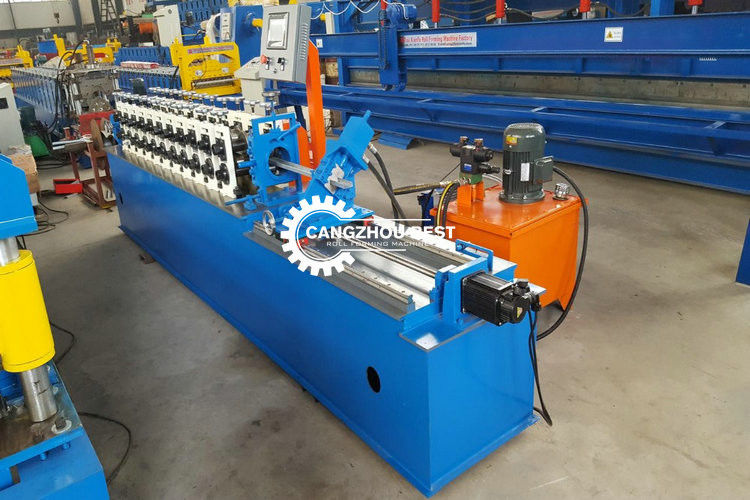

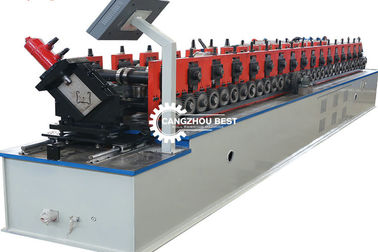

C Channel Stud And Track Roll Forming Machine For GI steel 0.4-1.0mm Thickness
Technical data of metal roof tile roll forming machine
| Suitable material | color steel sheet;0.3-07mm, |
| Working speed | about10-25m/min |
| stress | 235MPa,345MPa,550MPa. |
| Power | Main motor power: 5.5 Kw(Depend on final design) |
| Hydraulic station power: 4Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter,pressing die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, Roller grinder milling. |
| Shaft diameter | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 9500KGS |
| Machine’s size | about 18m×1.8m× 1.5m (Depend on final design) |
Layout drawing of machine
