PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine

PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine
PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine
PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine

Large Image :  PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine

Description
Product Name: PPGI Ridge Cap Metal Tile Roofing Ridge Cap Roll Forming Machine Machine Speed: 8-12m/min
Machine Power: 3kw+3kw Lifetime: More Than 10 Years
Warranty: 18month Control System: PLC
High Light:

12m/Min Ridge Cap Roll Forming Machine

,

ppgi Ridge Cap Roll Forming Machine

,

6kw Ridge Cap Roll Forming Machine

PPGI Ridge Cap Metal Tile Roofing Ridge Cap Roll Forming Machine



advantages


1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



Machine components



No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Pressing and Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Parameter


Product name

ridge cap galvanized

NO.

Items

Parameters

Remark

1

Suitable
Material

Type

GI/PPGI/AL







Width

300-5000mm

Custom





Thickness

0.30-0.80mm



2

Product
Specifications

Length

Any length







Length Tolerance

±2mm/6m



3

Working Speed

10-15 m/min

Standard machine

4

Control System

Mitsubishi/Siemens PLC& transducer

Custom

5

Total Power

4+3KW



6

Total Weight

About 3.0T

Up to final design





Working conditions
1.working size 15m x 2m x 4m
2.Power supply 6kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane


Terms

Payment: 30% T/T prepaid and balance should be paid before shipping.
Delivery time:40 days after receiving advance payment.
Guarantee period: 12months
Installation and training:if buyer visit our factory and check the machine, we will teach you how to install and use the machine.
And also train your workers/technician face to face.
We will send you video to teach you to install and operate.
If you need our technician abroad to your country, please arrange board and lodging and other necessary things.



Photos

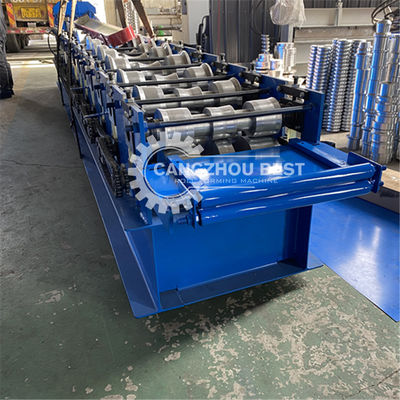

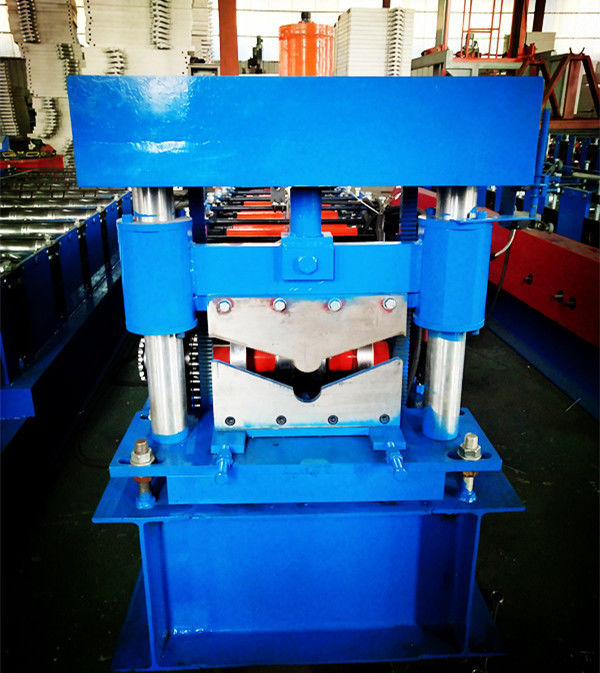

PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine 0

PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine 1


PPGI Metal Tile Roofing 12m/Min Ridge Cap Roll Forming Machine 2
