Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 2 Years |
|---|---|---|---|
| Weight: | 15 T | Voltage: | 380V 50Hz 3phases |
| Condition: | New | Color: | Customers Requirement |
| High Light: | Guardrail Profile Roll Forming Machine,3.2mm Profile Roll Forming Machine,10m/min Profile Roll Forming Machine |
||
Product Description

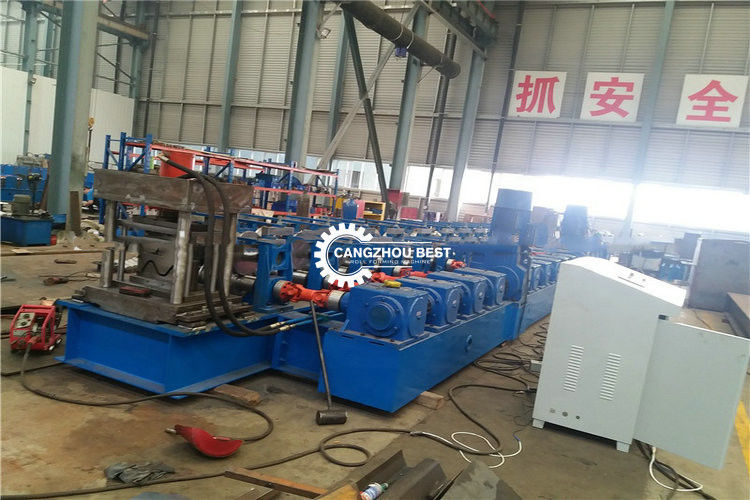

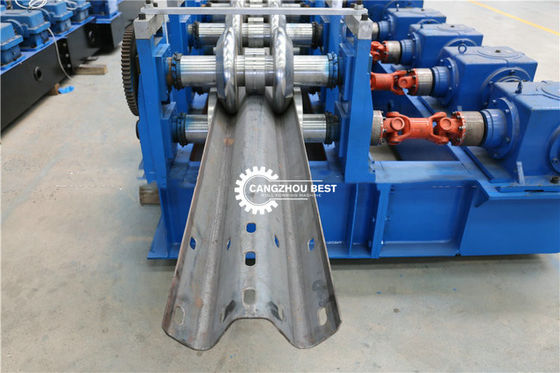

| Highway Guardrail Roll Forming Machine | |
| Feeding material | Galvanized steel |
| Thickness of the plate | 3.2mm |
| Machine size | 11000mm*1000mm*1200mm |
| Diameter of the axle | Φ100mm |
| Rolling material | Gcr15 |
| Rolling galvanization thickness | 0.05 mm |
| Rolling stages | 18 stages |
| Productivity | 10-12m/min |
| Total power | 18kw+18kw+15kw |
| Voltage | 380V 60Hz 3phase or as requirement |
| Weight | about 15T |
| Base frame | 400H steel |
| Side board thickness | 25mm |
| Cutting blade | Cr12 with heat treatment |
| Cutting system | Hydraulic cutting system after forming |
| Control cabinet | PLC and frequency changer in it |
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 2.5-3.5mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 9000mmx2000mmx1500mm |
| 8 | Speed | 3-5m/min |
| 9 | Diameter of shaft | 110mm |
| 10 | Weight of the Machine | 10000-12000KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 39.5kw |
| 15 | Power of hydraulic system | 7.5kw |
| 16 | Power of main molding core | 32kw |
|
Item
|
Parameters
|
|||
|
Product name
|
Highway guardrail roll forming machine
|
|||
|
The size of the roll forming machine
|
13000mm*2000mm*1500mm
|
|||
|
Voltage
|
380V or According to customer requirements
|
|||
|
Forming speed(m/min)
|
5~12
|
|||
|
Control system
|
Delta PLC control system
|
|||
|
Operation
|
Touch screen and button
|
|||
|
Hydraulic station motor power(KW)
|
5.5
|
|||
|
Power of main molding core(KW)
|
15KW+15KW
|
|||
|
Total weight(kg)
|
about 16000
|
|||
|
Material width
|
According to customer requirements
|
|||
