Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | One Year |
|---|---|---|---|
| Weight: | 15 T | Voltage: | 380V.50HZ.3Phase |
| Condition: | New | Color: | As Your Request |
| High Light: | Galvanized crash barrier roll forming machine,0.6m Crash Barrier Roll Forming Machine,Crash Barrier Roll Former |
||
|

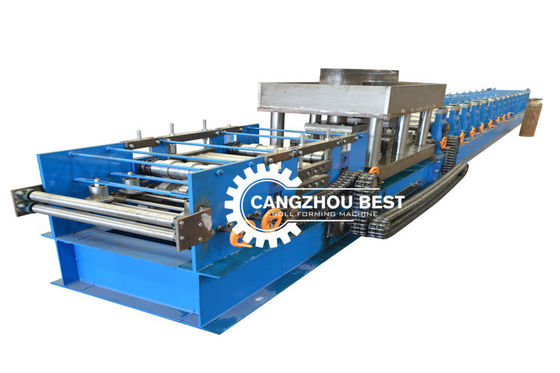

Machine Composition
|
Specification
|
||
|
10TonX600mm Hydraulic un-coiler
|
Hydraulic system to expand coil inner hole；Pump motor:4.0KW；
Frequency Inverter to regulate turn speed；Motor:2.2KW Coil Inner-diameter= 518±30mm. Coil Outer-diameter Max. 1600mm； Taper wedge expanding system Load Capacity: Max. 10Tons, coil Width Max. 600mm； Hydraulic Holder on the top to hold the sheet, keep press all the working time, special design on the hydraulic group |
||
|
Power feeding guide
|
7.5KW motor lead the sheet enter into next process smoothly
|
||
|
Pre-Level Device
|
Pre-Level Device with 4 over 3 shafts to remove the Coil-set
|
||
|
Welding support rack
|
Head of new coil and tail of last coil can weld on the rack
Not waste material usage |
||
|
Dual Hydraulic Pre-Punching device
|
Two sets of hydraulic punching machine
1st main punching machine for punching 18 slots at one time Two sets of punching dies (for different punching pattern usage) 2nd one for punching center single slot,two sets of punching dies as below Punching die material Cr12Mov, heat treatment
Hydraulic group, pump motor =22KW； |
||
|

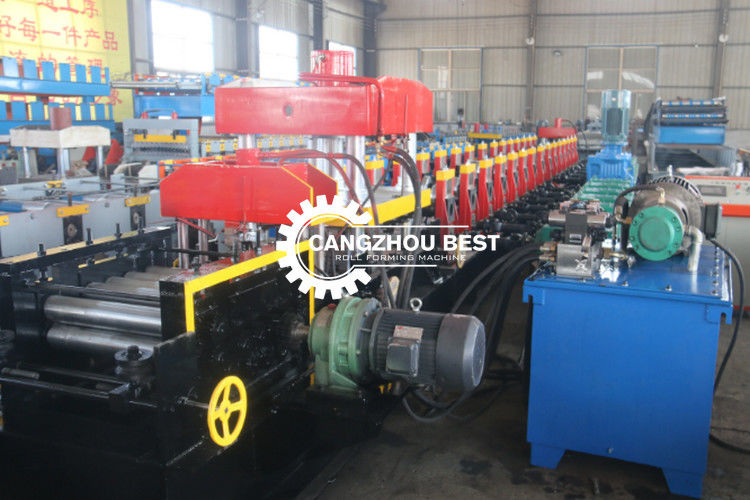

Cold Rolling Mills
|
Feeding section with guide
Gear box driving system, 16-step to form, separate stand frame design Rollers manufactured from Cr12Mov (SKD11), CNC lathes, Heat Treatment, Shaft Diameter Φ105mm, Precision Machined Main Motor 45KW to driven, frequency speed control Forming speed: 1 piece sheet per minute (based on 4320mm product) Protect mesh cover on the machine to avoid hands go inside Water cooling device |
||
|
Post cutting devic
|
Stop to cut, post cut, no waste cutting
Cutting section linear direction adjustable Via adjust the distance between cutting and punching section can realize cutting after punching when machine stop, increase the efficiency Extra hydraulic station for cutting, pump motor 22KW One set of post cutting die, cutting die material Cr12Mov, Heat treatment |
||
|
PLC Control System
|
Control the punching, quantity & cutting length automatically
Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc Cut-to-length tolerance≤±2.0mm Control Voltage 24V Portable controller for forward/backward/emergency stop |
||
|
Simple product rack
|
Un-powered, 5.5 meters length, 1 unit
|
||
Professional Manufacturer Standing Highway Guardrail Angle Iron Roll Forming Machine
| Equipment presidents | About 18m | Width | 0.6m | Height | 1.2m |
| Equipment weight | About 18 tons | ||||
| Version to width | width 154 mm Peak high 36 mm Peak from 40mm | ||||
| Decelerate organization | Planetary cycloidal reducer 15KW | ||||
| Transmission way | Chain transmission | ||||
| Wheels row number |
About 20 platoon
|
||||
| Material and processing | Pressure wheel for G chromium 15 bearing steel jing car,Polishing plating hard chromium 0.05 mm,Axis and hole with no loose clearance,Wall thickness 20mm. | ||||
| Host power | 18.5 KW/six poles | ||||
| Hydraulic power | 7.5KW | ||||
| Cut way |
Hydraulic cut off power 7.5 KW,125 oil cylinder Two,Blade Cr12 quenching,Rc62,No burr |
||||
|
Molding part |
Molding part seiko type wheel rotation forming, forming good effect, reduce the friction between the wheel and the raw materials, convenient speedy adjustment, to the maximum control not running deviation. | ||||
| Linking piece thickness | 4-7mm | ||||
| Production speed | 7 ~ 10 meters per minute | ||||
|
Control system
|
CNC system, main motor, Taiwan platform of inverter one, electrical ark one.
|
||||
| Manufacturer offers |
Nstructions for this |
||||
| Warranty | 1year | ||||
