Product Details:
|
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 2 Years |
---|---|---|---|
Weight: | 15 T | Voltage: | 380V.50HZ.3Phase |
Condition: | New | Color: | Highway Guardrail Steel Sheet |
High Light: | 2mm Guardrail Roll Forming Machine,8m/min Guardrail Roll Forming Machine,18.5kw Guardrail Roll Forming Machine |
Product Description
Highway Guardrail Making Machine
Working Flow:
Decoiler - Leveling machine - Servo feeding system - Hydraulic punching - Feeding guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table
Technical parameters:
Matching material | Galvanized, PPGI, Aluminum |
Material thickness range | 2-4mm |
Main motor power | 18.5KW |
Hydraulic motor power | 15KW |
Forming speed | 8-10m/min(include punching) |
Rollers | about 18 rows |
Material of rollers | Cr12 |
Shaft material and diameter | 106mm, material is 40Cr |
Way of driven | Chain transmission or Gear box |
Material of cutter blade | Cr 12 mould steel with quenched treatment 58-62℃ |
Controlling system | Siemens PLC |
Voltage | 380V/3Phase/50Hz |
Total weight | about 8 tons |
Size of the machine | L*W*H 12m*1.5m*1.2m |
(1) 10T hydraulic decoiler
(2) Pre-cutting
(3) Feeding & Leveling

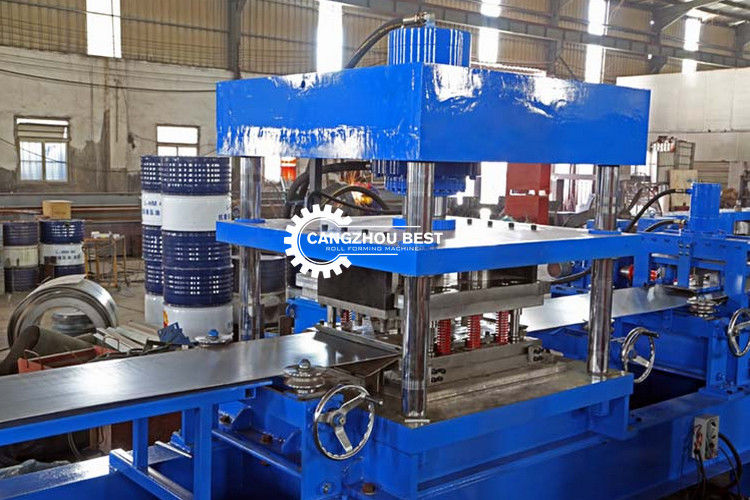

(4) Punching
(5) Cutting
(7) Conveyor table

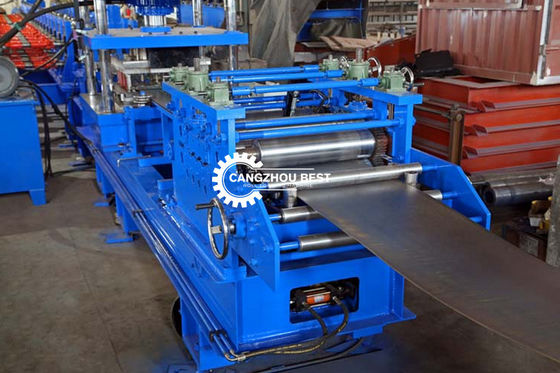

(8) Roll forming
