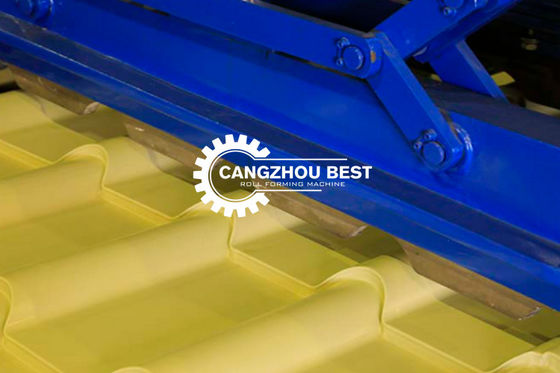

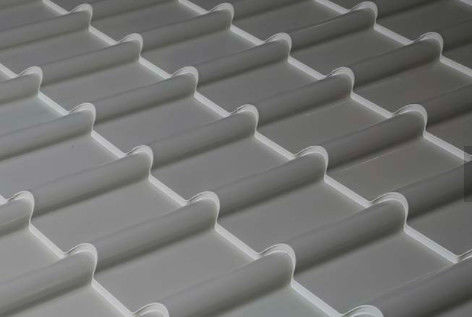

Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine

Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine
Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine

Large Image :  Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$8000---10000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine

Description
Tile Type: Steel Sheet Roll Forming Machine Steel Sheet Roll Forming Machine: 380V 50Hz 3phases
Condition: New Weight: 6T Roof Sheet Roll Forming Machine
Use: Roof/wall After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

14m/Min Roof Tile Roll Forming Machine

,

1.6mm Roof Tile Roll Forming Machine

,

GI Roof Tile Forming Machine

♠color steel sheet roll forming machine can produce two designs,this machine process galvanized steel and color steel sheet,thickness is 0.3-0.7mm.

♠This color steel sheet roll forming machine the best advantage is save space.But three layers can not working in the same time.PLC can choose working by up layer,or down layer.

♠We can make color steel sheet roll forming machine as your request, our engineer will make drawings before you order.If you have drawing,please offer it to us,our engineer will confirm it and will give advise.

♠We are professional in color steel sheet roll forming machine,we have more than 20 years in this area.



Item Parameters
Processing Material PPGI,GI
Processing Thickness(mm) 0.6-1.6mm
Main Frame/Middle plate

H400 Steel Beam/

20mm Steel plate

Material of Rollers 45# steel, with hard chrome coated
Diameter of Shaft 100mm
Number of Rollers 26 stand rollers
Production Speed 0-14m/min
Roller Driven Decelerating Motor+20A Chain Transmission
Cutting Model Hydraulic Profile Cutting
Length Measurement Encoder
Control Style PLC
Operation Model Button + Touch Screen
Total Power 27.5kw
Voltage 380V 50HZ or at buyer's request
Testing Material Q195



No. Item Specification
1 Steel coil Width 914mm
Material Ppgi/gi/gl/Alu-zinc
Thickness 0.21-0.4mm
Hardness Normal hardness/G550/HRB90
2 Forming Frame 300-450mm Height
Stations

As design of drawing

Main: 13 stations

Rollers

High grade No 45# steel with

hard 0.05mm chromed

Shaft High grade No 45# steel with

hard 0.05mm chromed

Diameter of shaft

As design of drawing

Main: 75 mm

Chain Main: 1-1.5 inch
3 Control PLC control China/Taiwan/Japan/Germany brand
Main motor Main: 4 kw
Language English or as your request
4 Cutting Cutter High grade Cr12 steel
Cutting system Hydraulic
Hydraulic pump Main: 7.5kw
Cutter frame Steel plate welding
5 Decoiler Manual 5 Tons
6 Product Receiving table Manual



Choose us, own professional service.



No.
Double layer roll forming machine
1
Suitable material
Color steel sheet ,galvanized steel sheet, aluminium sheet
2
Width of material
1000mm
3
Thickness of material
0.3-0.8mm or as your needs
4
Working speed
10-20m/min
5
Electrical control system
PLC control system
6
Shaft diameter
80mm
7
Dimension
7500x1500x1910mm
8
Weight
About 7 T
9
Voltage
380V 3phase 50HZ or as the customer's requirements
10
Material of roller
High grade 45# forged steel plated with hard chrome plating
11
Material of cutting
Cr12 mould steel with quenched treatment
12
Working time
Can be 24 hours
13
Workers
1-2 only



Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine 0
