Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 2 Years |
|---|---|---|---|
| Weight: | 15 T | Condition: | New |

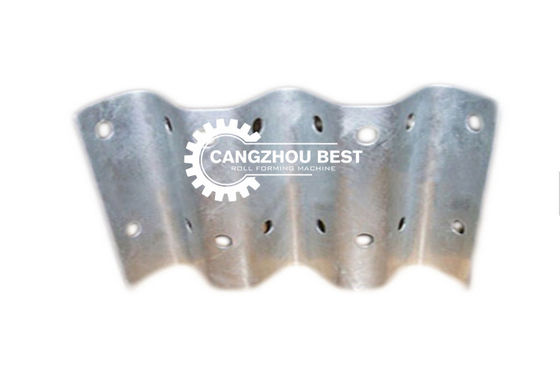

| Color: | Customers Requirement | Use: | Highway Guardrail Steel Sheet |
| High Light: | 2.5mm Highway Guardrail Making Machine,483mm Highway Guardrail Making Machine,PPGI Highway Guardrail Making Machine |
||
|
Suitable Material:
|
PPGI,PPGL,PI
|
|
Coil Width:
|
483mm or your need
|
|
Coil Thickness:
|
2.5-4mm
|
|
Profile Size:
|
customized
|
|
Color:
|
blue,grey,or your need
|
Dimensions: 1500*1000*800
Width: 1000mm
Inner Diameter: 450-508mm
Capacity: 5T
We also have Hydraulic type for 5T to 10 T .
Width: 800 mm Adjustable
It helps to keep products neat, parallel and everything is uniformity. Please refer to the equipment instruction to know the function of locate angle iron.

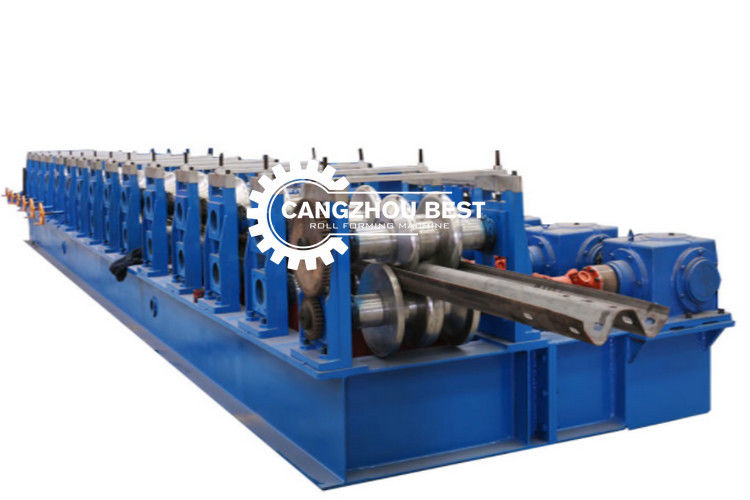

Roller Station: 18 rows
Roller/Shaft Material: No.45 steel, roller surface polishing , with heat treatment
Shaft diameter :90mm
Motor Power: 30KW
Capacity: 8-12m/min
Volume:16.5*0.8*1.3m
Voltage: 380V 50Hz 3Phase , or customized
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
Power: 11kw
Hydraulic oil: 46#
PLC Brand : Delta or Customized
Language: English,Spanish,Russian, Chinese
Control panel: Button or Touch Sreen
HMI : Easy to operate
Forming and Cutting: Cut the sheet after roll forming to required length
Material of blade: Cr12, 58-62 HRC hardness
Hydraulic power : 11KW
Length measuring : Automatic encoder length measuring
Tolerance of length : +/- 1.5mm for each piece
Size: 3*1*0.8m
Quantity: 2 sets
We also have Auto stacker for automatic production line .
|
Packing List
|
|
|
Size
|
16.5*0.8*1.4m
|
|
Width
|
about 7 tons
|
|
|
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' container to shipping. |
