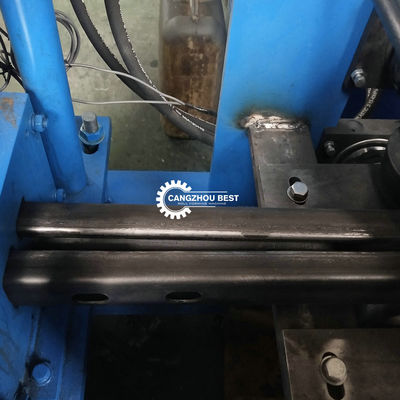

22kw Cold Anticollision Crash Barrier Roll Forming Machine

22kw Cold Anticollision Crash Barrier Roll Forming Machine
22kw Cold Anticollision Crash Barrier Roll Forming Machine 22kw Cold Anticollision Crash Barrier Roll Forming Machine 22kw Cold Anticollision Crash Barrier Roll Forming Machine 22kw Cold Anticollision Crash Barrier Roll Forming Machine

Large Image :  22kw Cold Anticollision Crash Barrier Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Model Number: YX158
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: naked 1x40GP
Delivery Time: 55days
Supply Ability: 15sets/month

22kw Cold Anticollision Crash Barrier Roll Forming Machine

Description
Name: Anti-collision Higway Guardrail&Crash Barrier Cold Roll Forming Machine Manufacturing Voltage: 380v Or 220v
Power: 22kw Control System: PLC
Roller Stations: 14groups
High Light:

crash barrier roll forming machine

,

anticollision roll forming machine

,

22kw cold roll forming machine

Anti-collision Higway Guardrail&Crash Barrier Cold Roll Forming Machine Manufacturing



Brief Introuduction



Suitable Material Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range 1-4mm
Coil Width Range

According to your actual drawing.

Electric Power

380V, 50 Hz, 3 phase

or according to your need.

Dimension About 9.2*1.3*1.1m(L*W*H), as per the drawing
Cutting Automatically stop and cutting when it comes to the set length.
Length of the Sheet

You can set the length according to your need.

It is controlled by PLC



Description



Hydraulic decoiler:

Steel coil width: from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;
Coil placement in the coil holder: hydraulic hoist;
Pulling of steel from the coil to the pulling mechanism for the start: manual;
Suitable of the pulling mechanism for all required thicknesses: included;
Device preventing unwinding of the coil from the coil holder: included;
Uncoiled metal compensator: included, assures even feeding at all production speeds;
Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw



Leveling

The quantity of leveler rolls must be planned according to thickness 2.0mm to 3.0 mm.
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft:¢70mm, material is SAE 1045, hardening and tempering



Punching:



Adopt Hydraulic punching
Diameter of cylinder¢140mm
Working pressure: 20mpa
The punches and dollies will be CR-12, hardness HRC 58-62
Hydraulic power :11KW
Dimensions: 1.5m* 1.1m* 1.2m

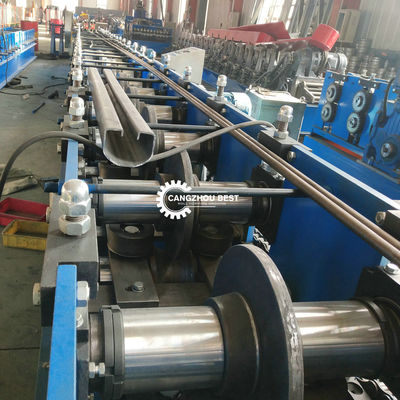

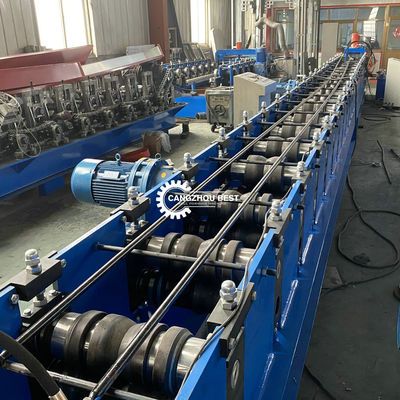

Forming section:



Main motor power : 55 kw
Cycloidal pin wheel reducer : BWD14-43-55KW,Place of Origin:Shanghai or Cangzhou
Transmission:Gear box【170#】
Shaft diameter: ¢110 mm material: SAE1045 with quenching and tempering
Roller material:ASTM1045 chrome plated surface with chrome
Forming station: about 16 stations (according the final design)
Machine roll forming speed :0m-15m/min(without punching)
Machine Voltage, Frequency:Japan Yaskawa(380 V, 50 Hz, 3Phase)

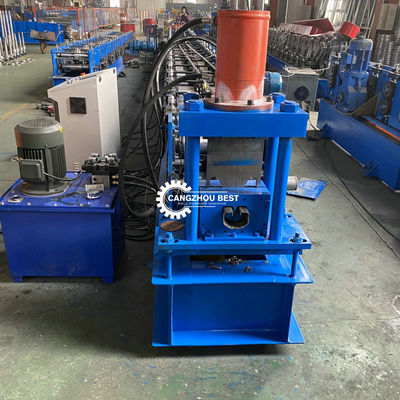

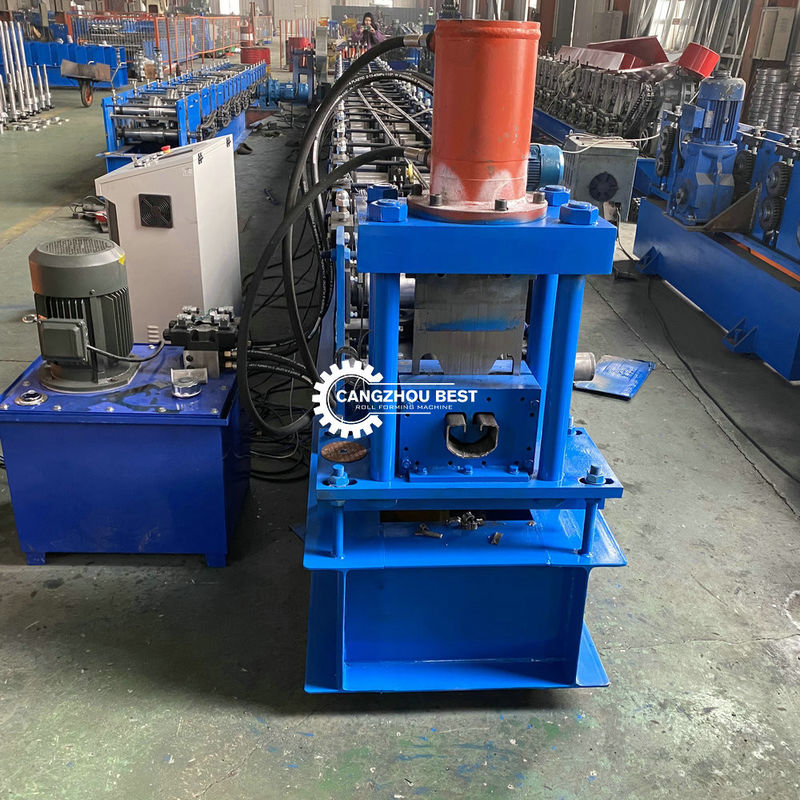

Cutting :



Shearing by hydraulic station

Material of blade:Cr12, 58-62 HRC hardness
Diameter of cylinder¢200mm
Working pressure:30mpa
Working range :80mm





Hydraulic station:

Hydraulic power: 11kW
Working pressure: 20-25Mpa adjustable
Solenoid valve: 3 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)





Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
