Construction Material Metal 15kw Floor Deck Roll Forming Machine

Construction Material Metal 15kw Floor Deck Roll Forming Machine
Construction Material Metal 15kw Floor Deck Roll Forming Machine
Construction Material Metal 15kw Floor Deck Roll Forming Machine Construction Material Metal 15kw Floor Deck Roll Forming Machine Construction Material Metal 15kw Floor Deck Roll Forming Machine Construction Material Metal 15kw Floor Deck Roll Forming Machine

Large Image :  Construction Material Metal 15kw Floor Deck Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV SGS
Model Number: YX-1020
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD25500-35500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Construction Material Metal 15kw Floor Deck Roll Forming Machine

Description
Name: Construction Material Metal Decking Floor Sheet Roll Forming Making Machine Condition: New
Voltage: 380v Production Capacity: 6-8m/min
Warranty: 2years Place Of Orgin:: Hebei,China
Power: 15kw Weight: 11t
Shaft Diameter: 90mm Cutting Blade Material: Cr12
High Light:

GI floor deck roll forming machine

,

construction GI deck roll forming machine

,

15kw floor deck roll forming machine

Construction Material Metal Decking Floor Sheet Roll Forming Making Machine





1. Main Features:

1) Guarantee/Warranty: 2 years
2) Price: Lower price with higher quality.
3) Machine Performance: Low break down rates, with long life.
4) Prompt Delivery: Short delivery time.
5) Quality : High quality get the approval of the customers.
6) Service: Good after service to guarantee you use the machine normally and sell your products well.



2. Main technical parameter:

No. Item
1. Processing Material PPGI,GI
2. Feeding Width As drawing
3. Processing Thickness(mm) 0.6-1.2mm or as your Customized
4. Material of Rollers GC15
5. Diameter of Shaft 90mm or as your Customized
6. Forming Speed 12-15m/min or as your Customized
7. Roller Driven 1.2 inch double Chain
8. Cutting Model Hydraulic Cutting
9. Length Measurement Encoder
10. Control Style PLC
11. Operation Model Touch screen
12. Total Power 22+5.5KW
13. Voltage 380V 50HZ 3Phase
14. Dimension(mm) About 12500*1500*1550MM
15. Weight About 12.5T
16. Stations 25 Stations
17. Installation Dimension About 18m*2m
18. Workers 2



3. Our Machine Advantage

1) Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2) Good service: we provide the technical support for whole life of our machines.

3) Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4) Easy operation:All machine cotrolling by PLC computer controlling systerm.

5) Elegant apperance:Protect the machine from rust and the painted colour can be customized

6) Reasonable price:We offer the best price in our industry.



4. Product Application

Floor Decking sheet roll forming machines have been designed for the production of various types of metal decks which are usually applied for building and floor industries, and sometimes for bridge construction as well. The most popular steel decks produced by our metal deck Roll Forming Machine are currently used in the industiral applications as following:
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.



5. Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



6. How can I trust you?

As for the quality, ISO&CE certifications have been achieved. For our innovations on the machines, we also get the Certificate of Utility Model Patent from State Intellectual Property office of the People's Republic of China. And, we are Trade Assurance supplier, our customers are covered for on-time shipment, pre-shipment product quality, most importantly, alibaba.com will refund you the covered amount when we supplier does not meet the requirements in the contract, so trade with confidence.

What should I provide if I'd love to customize my machine?

To customize machine, you should know:

1) Profile drawing

2) Raw material: Feeding width, Effective width and the material of the raw steel

3) Voltage: Designed as your requirements.

4) Configuration requirement: Hydraulic or manual decoiler/ stacker.

Below is the cooperation flow chart.

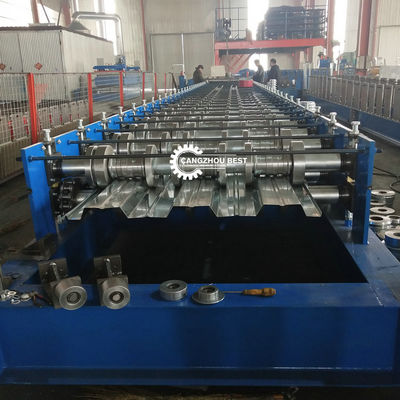

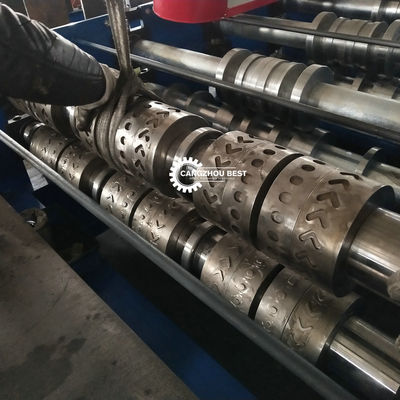

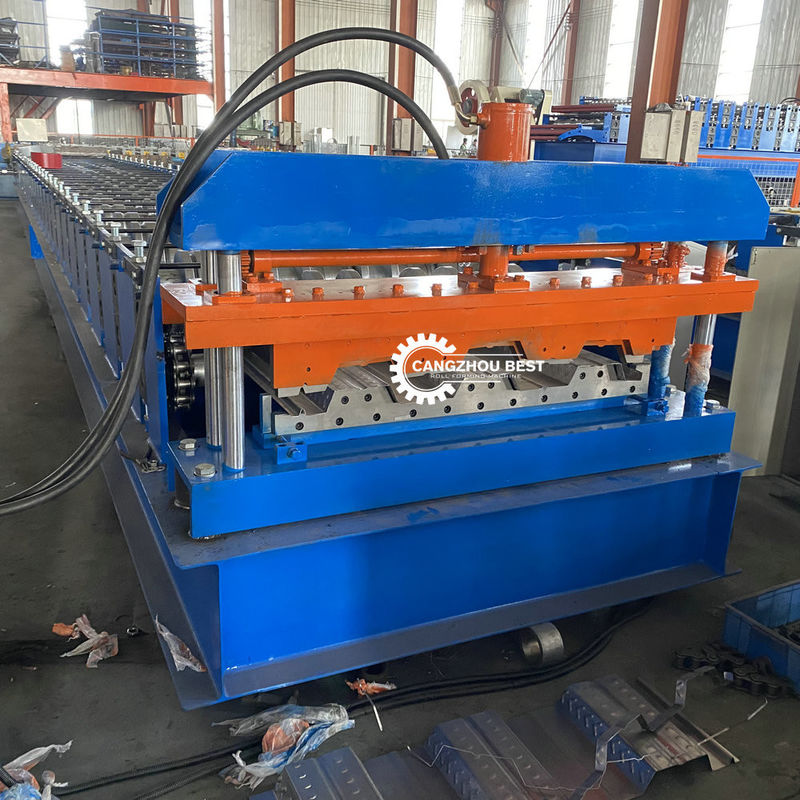

Photos for reference:

Construction Material Metal 15kw Floor Deck Roll Forming Machine 0

Construction Material Metal 15kw Floor Deck Roll Forming Machine 1
