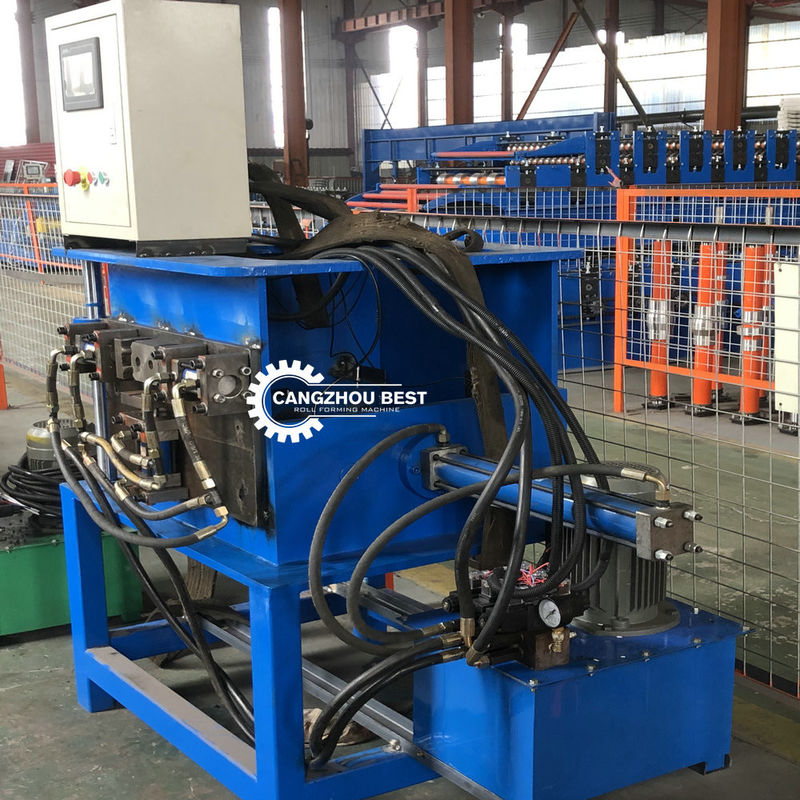

Product Details:
|
| Product Name: | Water Downspout 70mm Round Pipe Roll Forming Machine Machinery | Rolling Thickness: | 0.3-0.8mm |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Diameter: | 60-130mm |
| Machine Power: | 5.5kw+3kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | 70mm downspout roll forming machine,round pipe downspout roll forming machine,round downpipe roll forming machine |
||
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Specifications:
(1). Brief Introduction
The PIPE made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in ROOF BUILDING
(2). Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
(3).Technical Detail
1. Machine specification: forming thickness(0.3-1.0)xL, yield strength≤G250Mpa
2. Forming speed: 12-15M/min (EXCLUDING CUTTING STOP TIME)
3. Forming roller: about 20 groups
4. Main motor power: 7.5KW
5. Hydraulic station power:4KW
6. Roller material: 45# forged steel, surface coated with chrome
7. Main shaft material: 45# steel
8. Main axis dia.: 68mm
9. Hydraulic cutting pressure: 10-12Mpa
10. Cutting method: hydraulic powered, cutting after roll forming.
11. Cutting blade material: Cr12 quenching treatment
12. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
4)Our advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
1) Manual Uncoiler
The Bearing weight is usually 5 tons.We can provide bigger ones according to customers' actual needs.This uncoiler is used to uncoiling the raw material coils.
2) Material Feeding Platfor
The coil after uncoiling will go into the roll forming body throught this device.It can keep the plate well-leveled.
3) roll forming machine
The flat sheet will be formed many defferent patterns after roll forming.Each model has it own design of rollers.
4)Automatic cutting
After making the step,the sheet will be cut automatically according to the setted length.The system includes computer control cabinet,encoder,hydraulic station,step-forming device and cutting device.
5)products receiving tables
They are used to receive the finished products.
Packing
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our service
| Payment Term | 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery. |
| Delivery Time | The seller guarantees the equipment will be ready for shipment within 30working days after receipt of deposit from the buyer. This machine is in stock now |
| Service | We could send the technician to your country to fix the machine if you need. |
| Warranty | 18 months During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines |
We have professional team to make different kinds of roll forming machines for our customers, from designing, processing,assembling, debugging, delivery. We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines. If there is any problems happened to the machine, we will provide solution at once. Hope we could establish win-win business relations in the soon future!
And We provide the technical support for whole life.Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.When need the technician to go abroad, we will arrange the technician.But the buyer should take all the cost, including Visa, Roundtrip ticket,suitable accommodation and pay the service fee to the technician with $100/days
