Product Details:
|
| Name: | Metal Roofing Iron Sheet Corrugating 850mm Roll Forming Making Machine Line | Roller Material: | Hydraulic Cutting |
|---|---|---|---|
| Feeding Width: | 1000mm | Cutting Blade Material: | Cr12 |
| Delivery Time: | 25-30 Days | Shaft Material: | 45# Steel, Quenched |
| Effective Width: | 850mm | Marketing Type: | Hot Product 2021 |
| Speed: | 8-12m/min | Side Panel: | 20mm |
| High Light: | 850mm corrugated iron roofing sheet making machine,850mm corrugated iron sheet making machine,PLC corrugated iron roofing sheet making machine |
||
Metal Roofing Iron Sheet Corrugating 850mm Roll Forming Making Machine Line
Overseas engineers can perform installation, instruction, commissioning, and maintenance.
The finished product of Profile Use Metal Steel Tile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |

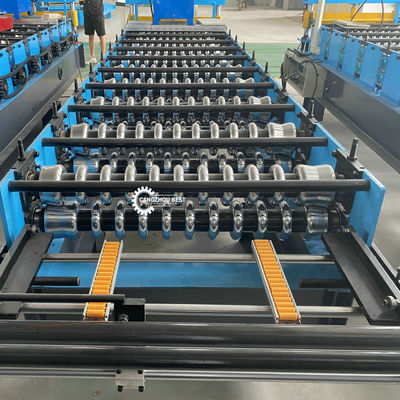

| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 75 mm |
| 5 | Productivity | 8-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chrome |
| 8 | Weight | 6.5 tons |
| 9 | length | 6.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |

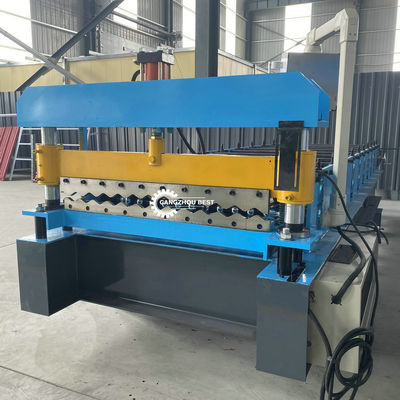

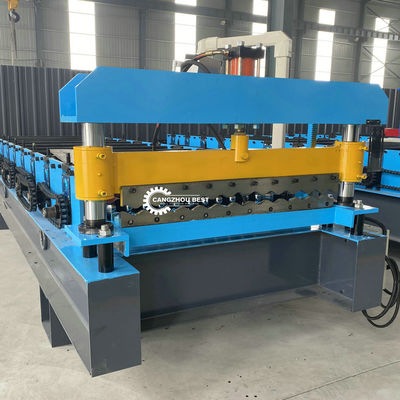

| 16 | Cutting system | Hydraulic cutter |
3. Machine Details:
Fully automatic tile Roofing Roll Forming Machine is composed of feeding, forming and cutting after forming. The products produced by tile press have smooth and beautiful appearance, uniform lacquer pattern, high strength and durability. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, locomotive garages, hangars, gymnasiums, exhibition halls, cinemas and theatres. Its components include: whole machine, PLC computer control system, hydraulic pump station system, automatic post-shearing system.
5. Guarantee:
| 1 | we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket, visa, accommodations, food and transportation in your country. |
| 2 | You can send your men to our factory. we will teach them how to operate the machine without training charges. |
| 3 | Actually, there's another cheap and easy way to choose. Every machine leaves our factory with one book of operation manual. You can read through the manual first, and get familiar with the machine. Then we can get a video call, and teach you on-line on how to operate the machine. |
| 4 | Apart from the above training course, we also provide 18 MONTH warranty for all the easily broken part of the machine for free and whole-life technical service support. |
5. Packing:
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.
We can produce according to your requirements.
