GI Gearbox Transmission Roofing Sheet Roll Forming Machine

GI Gearbox Transmission Roofing Sheet Roll Forming Machine
GI Gearbox Transmission Roofing Sheet Roll Forming Machine GI Gearbox Transmission Roofing Sheet Roll Forming Machine GI Gearbox Transmission Roofing Sheet Roll Forming Machine GI Gearbox Transmission Roofing Sheet Roll Forming Machine

Large Image :  GI Gearbox Transmission Roofing Sheet Roll Forming Machine

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY900
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

GI Gearbox Transmission Roofing Sheet Roll Forming Machine

Description
Product Name: Color Steel Gear Box Transmission Roofing Sheet Panel Roll Forming Machine Color: Blue Or As Your Request

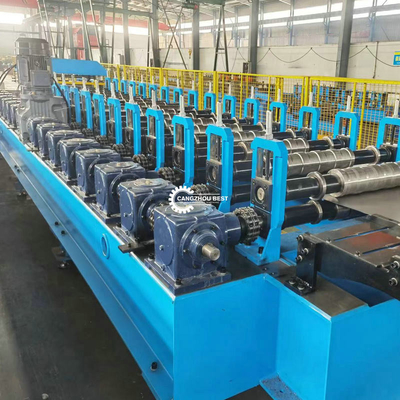

Machine Speed: 8-12m/min Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

gearbox transmission roofing sheet roll forming machine

,

gi roofing sheet roll forming machine

,

gi roof panel roll forming machine

Color Steel Gear Box Transmission Roofing Sheet Panel Roll Forming Machine



Suitable Material Material GI, PPGI, PPGL
Width 1000mm
Thickness 0.3-0.8mm
Yield strength Q235
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 20 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 70mm
Material of cutting blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 20-25m/min
Side plate thickness 20 mm
Chain size 1 inch
Total power 7.5 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 8500mm*1600mm*1500mm
Weight(About) 9 tons
Length measurement Encoder
Control mode PLC
Operating mode Button +Touch screen

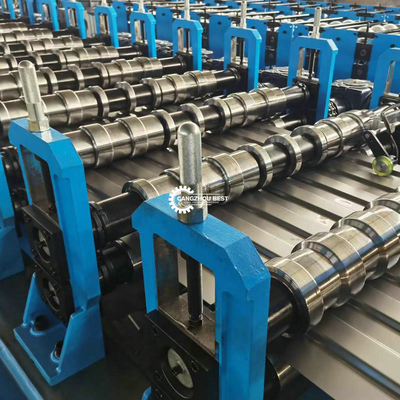

1.Roll Forming Machine

In the overall frame of the fuselage, we use the raw material of No.45 steel, and the wheel archway USES the raw material of CR12. Very stable. We have a professional design team, for you to calculate the version of the parameters, improve the version of the drawings.

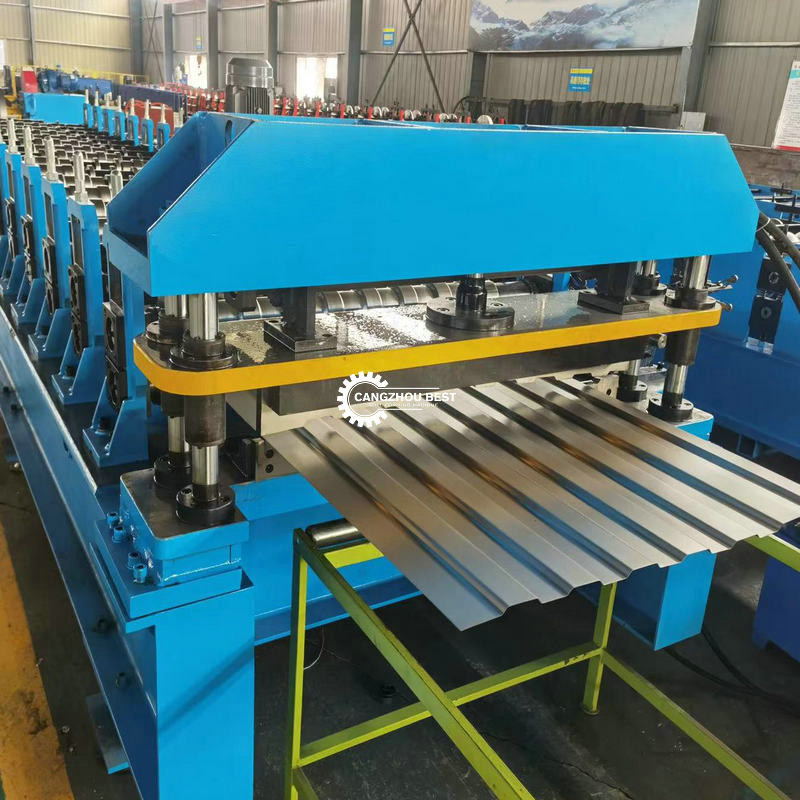

2.Cutting system

The cutting device is driven by hdyraulic station.The cutting device is driven by hdyraulic station. Meterial of the cutting:Cr12Mov with quenched treatment. It can decide cut panel dimension acoording to the hydraulic drive and Plc computer control system



3.PLC Control system

Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.

In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components.And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators



Our service



Advantage of the service:

1. Provides engineering drawing design services

2.Provide machine customization service

3.Remote video service

4.Engineer on-the-spot installation service

5. Help customers booking shipping service

6.Help customers purchase raw materials service



After-sales service:

1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery.

2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.

4.Warranty: 2years



FAQ

Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
