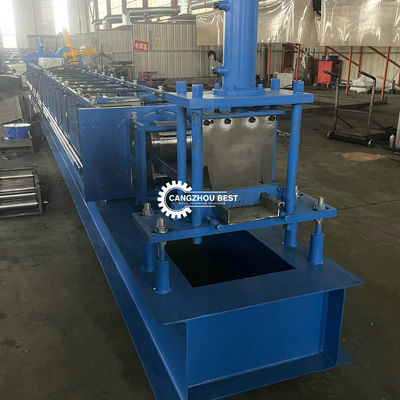

Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform

Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform
Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform

Large Image :  Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: YX110
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard
Delivery Time: 35days
Supply Ability: 10sets/mpnth

Scaffolding 2.0mm Panel Roll Forming Machine For Foot Pedal Scaffolding Platform

Description
Name: Scaffolding Panel Foot Pedal Scaffolding Platform Roll Forming Machine Material: GI Black Steel
Coil Width: As Customer Request Warranty: 2 Years
Machine Length: 11mm Machine Weight: 10tons
Life Time: 10years
High Light:

scaffolding panel roll forming machine

,

2.0mm panel roll forming machine

,

scaffolding platform panel roll former

Scaffolding Panel Foot Pedal Scaffolding Platform Roll Forming Machine



Main Parameter




Technics flow



Decoiling→feeding steel strip→levelling→sheet leveling punchine to length→cut to length→roll forming→run out table



Machine components:



De-coiler------------------------------------------1set

Leveling device----------------------------------1set

Forming machine-------------------------------1set

Punching and Cutting device -----------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set



No.

Item

Description

1

Decoiler

Electrical type, 5tons

2

Machine frame

350H beam welded, polish

3

Machine structure

steel wall panel, 20mm

4

Shaft

80mm

5

Chain

Single chain 2'

6

Main motor power

2*7.5kw

7

Forming steps

18 steps

8

Roller material

High grid GCR15

9

Cutting method

Hydraulic cutting

10

Cutter blade material

Cr12,HRC58°-60°

11

Suitable material thickness

1.2-2.0mm

12

Control system

PLC

13

Punching device

100tons Punching machine, servo feeding, inluding one set mould





Detial Parameter



Decoinler

‹1›inner diameter of the coil:350-450mm

‹2› Max coil width :800mm

‹3›coil load: 3.0T



Forming Device:

‹1› Shaft material:Gcr15steel

‹2› roller material :Gcr15steel

‹3› transmission: Gear box

‹4› forming speed:15-20m/min

‹5› No. of forming rollers :15groups

‹6› Voltage:380V,50Hz

(7)Machine power:18.5kw



4.Punching and Cutting System:

advanced hydraulic drive, automatically cutting after forming,

no distorting or wasting, high level safety factor.

‹1› Power:7.5kw

‹2› Blade material :Cr12mov

‹3› Punching die material: Cr12mov



5.Control System:

Computer is used to control length and quality,

Machine can cut and stop automatically when required length is achieve





Installation and Training:



a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.



After Service

a.24moths guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.
