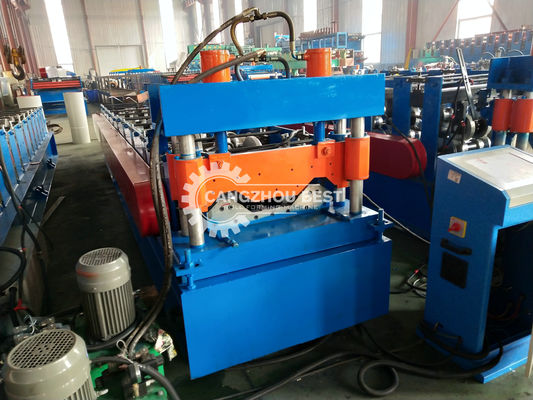

Product Details:
|
| Name: | Fire Damper Flexible Adjustable Long Span Roof Roll Forming Machine | Material: | PPGI GI |
|---|---|---|---|
| Power(W): | 31.5KW | Dimension(L*W*H): | 11.5*2.23*2.35m |
| Weight: | 10t | Control System: | PLC |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
Product Description
K-Span system mobile roll forming machines are capable of constructing arch buildings and roofs on site, with spans ranging from as narrow as 4m to as wide as 40m. There is no limitation on the length of the building or roof that can be produced.
K-Span system arch roofs can be installed on masonry brick, concrete or steel structures, eliminating the need for a conventional roof support structure.
K-Span system arch buildings and roofs can be adapted to fit existing infrastructure or be considered as a standalone solution for new projects.
Main technical specification:
| Size | 9,000mm×2,250mm×2,300mm |
| Total Weight | About 10,000KG |
| Cutting Material | Cr12Mov, Heat treatment |
| Cutting Type | Hydraulic/Mechanical controlling cutting |
| Total Motor Power | 18.5KW |
| Forming Power | 7.5KW |
| Bending Power | 4.0KW |
| Cutting Power | 4.0KW |
| Conical Power | 1.5KW |
| Material of Rollers | 45#steel, quenched HRC 58-62 |
| Material of Shafts | 45#steel, adjusted |
| Step of Rollers | 13 |
| Max Span | ≤15m |
| Width of the Panel | Feeding width: 914mm , Finished width: 610mm |
| The Depth of the Groove | 86mm |
| Operating Factor of the Panel | 0.82 |
| Thickness of the Panel | 0.8-1.5mm |
| Working Speed | Straight Sheet: 15mm/min, Arch Sheet: 13m/min , Seaming: 6m/min |
| Electric Standard | 380V/50HZ/3PHASES or according to your requirement |
| Controlling System | PLC(Omron,Japan) |
Product Size
| TYPE | Feeding Width (mm) | Finished Width(mm) | Groove Depth(mm) | Coil Thickness (mm) | MaxSpan | Use ratio |
| CS-600-305 | 600 | 305 | 109 | 0.8-1.5 | ≤24m | 51% |
| CS-914-400 | 914 | 400 | 210 | 0.8-1.5 | ≤40m | 43.80% |
| CS-914-610 | 914 | 610 | 203 | 0.8-1.5 | ≤38m | 66.70% |
| CS-914-650 | 914 | 650 | 181 | 0.8-1.5 | ≤28m | 71.10% |
| CS-914-700 | 914 | 700 | 123 | 0.8-1.5 | ≤24m | 76.60% |
| CS-914-750 | 914 | 750 | 86 | 0.8-1.5 | ≤15m | 82% |
| CS-1000-400 | 1000 | 400 | 253 | 0.8-1.5 | ≤40m | 40% |
| CS-1000-550 | 1000 | 550 | 187.5 | 0.8-1.5 | ≤30m | 55% |
| CS-1000-610 | 1000 | 610 | 243 | 0.8-1.5 | ≤39m | 61% |
| CS-1000-680 | 1000 | 680 | 223 | 0.8-1.5 | ≤32m | 68% |
| CS-1000-700 | 1000 | 700 | 175 | 0.8-1.5 | ≤28m | 70% |
| CS-1000-750 | 1000 | 750 | 138 | 0.8-1.5 | ≤25m | 75% |
| CS-1000-800 | 1000 | 800 | 114 | 0.8-1.5 | ≤14m | 80% |
| CS-1220-800 | 1220 | 800 | 300 | 0.8-1.5 | ≤42m | 65.50% |
| CS-1250-800 | 1250 | 800 | 320 | 0.8-1.5 | ≤42m | 64% |
Advantage of our Roll Forming Machine Building Sheet Arch Machine:
HIGH SPEED OF CONSTRUCTION
With our MBM Mobile Factory, a 1000-square meter structure can be built in 24 hours. Using the high speed of fabrication and seaming of panels,a crew of 10 to 12 workers can fabricate and erect nearly 100 arched panels in one day.
LOW COST
Due to the above reason, the cost of construction of a MBM Building is less than that of conventional and prefabricated buildings.
ON-SITE MANUFACTURING
The Mobile Factory is taken directly to the construction site and the building is fabricated completely on-site. No costs of shipping of building components from a fabrication shop are incurred.
MOBILITY AND ACCESS TO REMOTE AREAS
Our trailer-mounted MBM Factories can be easily towed by and ordinary vehicle to any remote part of the country and put into operation the moment it arrives at the site without any delay whatsoever.
NO STRUCTURAL COLUMNS, BEAMS OR TRUSSES REQUIRED
The arches are designed to be totally self-supporting and do not require any support structure such as is needed in standard steel frame buildings.
SAVINGS IN MANPOWER
Our crew of approximately 10 to 15 trained men can erect a 1000 square meter building in a single day. You can build your buildings in either steel or aluminum, prepainted in an unlimited range of colors. We also stock most of our coils and immediately ship with our unit to the site.
Color metal glazed tile roofing sheet making machine with 3D effect is delivered by nude with oil putting. It will be fixed in the container tight by steel wire.
Our Services
Cangzhou BEST cold rolling forming machines we give the following before and after sale service:
1. Once we receive your drawing, we will give you some feedback according to our expereince.If there is some mistake in the drawing, we can point it out at the first time.
2. In the production, you can watch the whole prduction by camer if you like.
3. we give two year totally free after sale service and whole life tech support. For indian customer we give whole life free tech and engineering and free installation as we have warehouse and engineer there. Please know a little more about our factroy.
