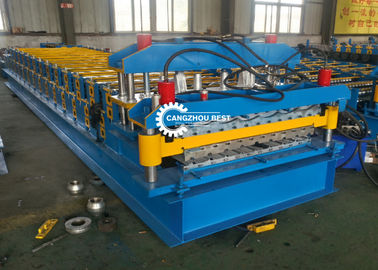

Metal Double Layer Cold Roll Forming Machine For Roofing Sheets & Tile Steel Profile

Large Image : Metal Double Layer Cold Roll Forming Machine For Roofing Sheets & Tile Steel Profile

Product Details:

Place of Origin:	China Hebei
Brand Name:	CHBEST
Certification:	CE/BV/SGS
Model Number:	XY836

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	plastic film for naked machine
Delivery Time:	20-30 days
Supply Ability:	20 sets/month

Contact Now

Metal Double Layer Cold Roll Forming Machine For Roofing Sheets & Tile Steel Profile

Description

Product Name:	Steel Metal Double Layer Roofing Sheets&Tile Steel Profile Cold Roll Forming Machine	Color:	Blue Or As Your Request
Machine Speed:	8-12m/min	Driven System:	Chain Or Gear Box
Control System:	PLC	Cutting Type:	Hydraulic
Warranty:	2 Years	Bottom Frame:	360 H Steel
Highlight:	roofing sheet making machine , metal sheet roof roll forming machine

Steel Metal Double Layer Roofing Sheets&Tile Steel Profile Cold Roll Forming Machine

Working Flow:

Manual decoiler→→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products

Draft Specifications

1	Suitable to process	Color steel
2	Width of the raw material	1200
3	Output width	1000
4	Rollers	16 rows
5	Power	4kw+4kw
6	Thickness of the plate	0.3-0.8mm
7	Productivity	12-15m/min or 25-35m/min by hydraulic motor
8	Diameter of the roller	72mm
9	Weight	About 4 T
10	Voltage	380V 50Hz 3phase
11	Received table	4 meters
12	Raw material of the cutter	Cr12 steel
13	Raw material of the roller	45#steel

Manual decoiler:

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 450-550mm
Maximal out diameter: 1500mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

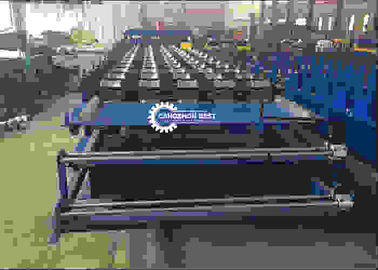

Forming section

Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Feeding type: adjustable
Feeding width:900-1300mmmm
Entrance and guide roller: diameter is ￠70mm, material is 45# steel,surface with chrome

Cutting :

Cutting after forming: Cut the sheet after roll forming to required length.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,3KW

Length measuring: Automatic encoder length measuring, Brand: Omron
The cutting sequence is also contained and controlled by the same PLC program

out table:

Jointed by 60mm*40mm tube
Size: 1.0m long*0.8mwide*0.6-1mhigh
One out table with two support roller

Two sets.

Hydraulic station:

Hydraulic power: 4kW
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.

3)Operating system language: English and Chinese

4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview

Sales Service

We provide the technical support for whole life.

Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.

When need the technician to go abroad, we will arrange the technician.

But the buyer should take all the cost, including Visa, Roundtrip ticket,

suitable accommodation and pay the service fee to the technician with $100/days
