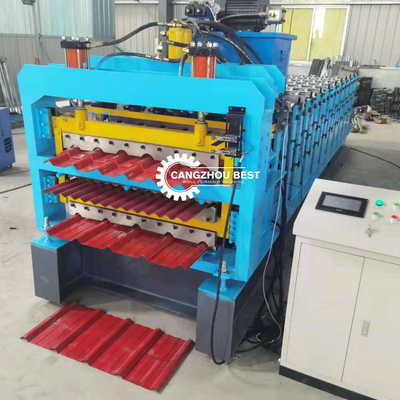

15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel

15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel
15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel 15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel 15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel

Large Image :  15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel

Description
Product Name: 15m/Min Automatic Hydraulic Press Triple Layer Machine For Roofing Panel Cutting Blade Material: Cr 12 High Grade Steel
Main Motor Power: 3kw Material Thickness: 0.3-0.8mm
Shaft Material: 45# Steel Key Selling Points: Automatic
Hydraulic Pump Power: 5.5kw Place Of Origin: Hebei, China
Operate Style: Automatic Tile Type: Color Steel
High Light:

hydraulic press automatic roll forming machine

,

triple layer automatic roll forming machine

,

15m/min roofing panel roll forming machine



15m/Min Automatic Hydraulic Press Triple Layer Machine For Roofing Panel



Product profile:

South Africa three layer corrugated roof tile roll forming machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings,and Roof board for attached part product It has advantage of pretty appearance,durable using and so on.



Specification:

Manual decoiler
Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading

capacity: 5T,Inner diameter: 500-508mm



Feeding table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Remarks: Pre-hand cutting is manual

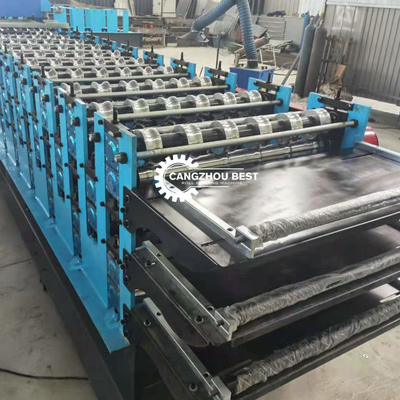

Main rollers
Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.



Computer Control Cabinet
PLC: Delta PLC(or according to customer's inquirement)
Touch Screen: Delta
Frequency system: Delta Chinese/English and Russian Or Spanish



Motor driver
Main motor size : 5.5Kw

Brand: The famous brand from Jermany or according to customer's need



Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
Received goods table
It adopts welded steel and supported roller to transmit the products, which is used to collect the finished products. 2 pieces 3meters
Passive Decoiler
1Set
Feeding Platform with Pre-cutter
1Set
Roll Forming Machine
1Set
PLC Control System
1Set

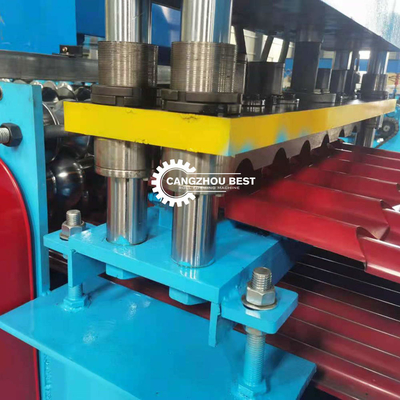

Hydraulic Cutting System
1Set
Exit Rack for roofing production
2Pieces 3Meters
Spare parts
One carton box





Roller press is designed according to the principle of bed grinding, its main features are: high pressure, full speed, full material, bed crushing. The roller press is composed of two extrusion rolls, one is fixed roll, the other is movable roll.

The common roller press is composed of frame, two roller systems, transmission device, torque support, roller cover, feeding device, hydraulic (pressure) system, main bearing lubrication system, dry oil lubrication system, electrical system, roll removal device, etc. In addition to the main parts and devices of the ordinary roller press, the precision roller press adds the device to ensure the calendering accuracy.





Terms:

1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.

2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100 per day.

4.Warranty: 18 months

During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.



export standard packages details


- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

- 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

- 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.

- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the
machine,they can teach you how to operater the machines.



Photos



15m/Min Automatic Roll Forming Machine Hydraulic Press Triple Layer For Roofing Panel 0
