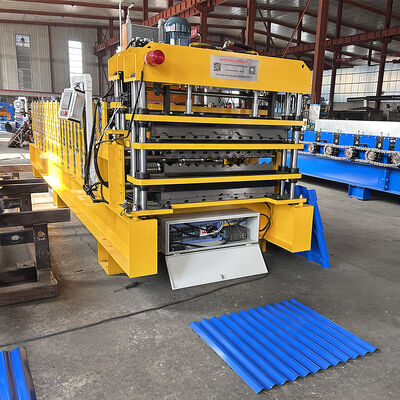

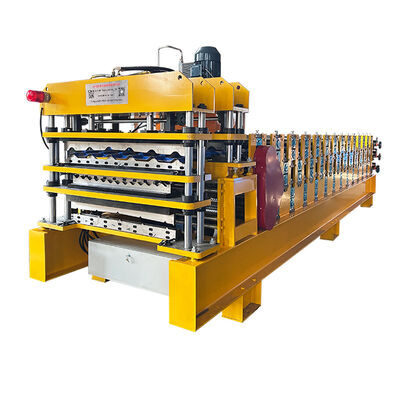

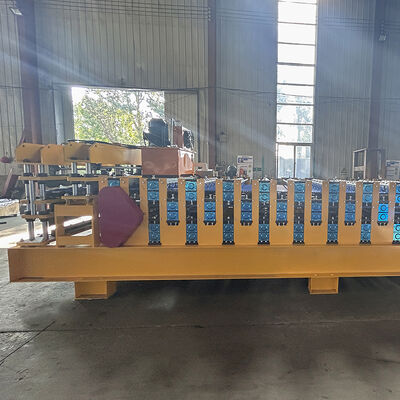

PPGI & GI Steel Three Layer Roof Sheets Roll Forming Machine Production Line
This advanced production line specializes in manufacturing three-layer PPGI and GI steel roof sheets through precision roll forming technology.
Company Profile
Cangzhou Best Machinery Manufacturing Co., LTD specializes in manufacturing high-end cold bending forming equipment. Our team includes professional engineers with over 20 years of experience in cold bending mechanical equipment design, providing specialized design and manufacturing solutions. We offer comprehensive services including equipment installation, guidance, production, and commissioning.
Production Line Components
Roll Forming Machine
1 set
Production Workflow
Decoiler → Feeding → Roll Forming → Cutting → Output Table
Main Technical Parameters
| Parameter |
Specification |
| Shaft Material |
No.45 steel with treatment |
| Roller Station |
Up 16 steps, down 18 steps |
| Main Shaft Dimension |
70mm |
| Material Thickness |
0.3-0.8mm |
| Roller Material |
No.45 steel with treatment |
| Working Speed |
8-12m/min |
| Material |
PPGI/GI |
Component Specifications
Decoiler
Capacity: 5000kg
Width: 1250mm
Type: Hydraulic or Manual (Optional)
Inner Diameter: 450-550mm
Outer Diameter: 1500mm
Roll Forming Machine
Power: 3kw
Frame panel thickness: 14mm
Bottom Frame: 360H steel
Weight: 5t
Cutting Device
Type: Hydraulic
Driven: 1 inch chain
Power: 3kw
Cutting Blade: Cr12 steel
Hardness for Heat Treatment: HRC55 - 60°
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Hydraulic Pump
Power: 3kw
Oil Type: 46# hydraulic oil
Pump Brand: China Brand
Output Table
Length: 6m - Simple design for loading finished products
Service & Support
Payment Terms: 30% T/T prepaid, balance before loading
Delivery Time: 30 days after receiving advance payment
Warranty: 18 months free service, paid service throughout machine life
Installation & Training: On-site training available for visiting customers, or comprehensive user manuals and instructional videos provided for remote support. Technical support visits available with arrangement of board and lodging.
Packing Details
- One 40ft container for loading one set machine with manual decoiler
- Complete anti-rust oil treatment, PLC controller protected with foam film
- Spare parts and small components packed in plastic tooling boxes
- All components securely fixed with steel wire within container
