PU Sandwch Panel Production Line Automatic Continious Online Foaming

China PU Sandwch Panel Production Line Automatic Continious Online Foaming supplier
PU Sandwch Panel Production Line Automatic Continious Online Foaming supplier PU Sandwch Panel Production Line Automatic Continious Online Foaming supplier PU Sandwch Panel Production Line Automatic Continious Online Foaming supplier PU Sandwch Panel Production Line Automatic Continious Online Foaming supplier

Large Image :  PU Sandwch Panel Production Line Automatic Continious Online Foaming

Product Details:

Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY960

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Product Name: Automatic Continious Online Foaming PU Sandwch Panel Production Line Color: Blue Or As Your Request
Machine Speed: 4-6m/min Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years

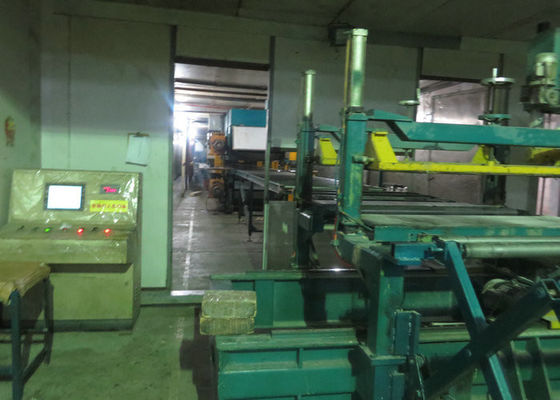

Automatic Continious Online Foaming PU Sandwch Panel Production Line

Working flow
PU Sandwch Panel Production Line Automatic Continious Online Foaming
Machine components


No.NameQty
1.De-coiler1 Set
2.Roll Forming Machine1 Set
3.Laminating Machine1 Set
4.PLC Control Box1 Set
5.Hydraulic Pump1 Set
6.Output table1 Set
7.Saw cutting device1 Set





Decoiler


TypeManual type(standard)Hydraulic type(option)
PhotoPU Sandwch Panel Production Line Automatic Continious Online FoamingPU Sandwch Panel Production Line Automatic Continious Online Foaming
Width1250mm1500mm
CapacityMax 5tonsFrom 5-15 tons
Inner diameterφ508-610mmφ508-610mm
Outer diameterφ1500mmφ1800mm

roll forming


ItemParameter detail
Processing MaterialGI and PPGI
Material thickness0.25-0.8mm
Machine frame360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate typePillar type(option)
PU Sandwch Panel Production Line Automatic Continious Online FoamingPU Sandwch Panel Production Line Automatic Continious Online Foaming
Plate thickness:20mmPillar thickness:30mm
Painting:normal paintingpainting:Chroming



Forming stations13-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaftφ70-80mm high garde No.45 steel after treatment,
Machine spacersCNC lathing in high-precision
Machine bearingsChina Haerbin bearing or SKF international bearing(option)
Driving system1 inch chain or gear box(option)
Machine power3kw-11kw(according to the profiles)
Machine working speed8-12m/min or 10-30m/min(option)
Machine adjust typeAfter machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Laminating Machine

Main ItemParameter detail
1.Roller groups22 Groups
2.PhotoPU Sandwch Panel Production Line Automatic Continious Online Foaming
3.Roller MaterialRubber
4.Roller Diameterφ180mm
5.Square tube size180x180mm
6.Laminating machine length8-12m

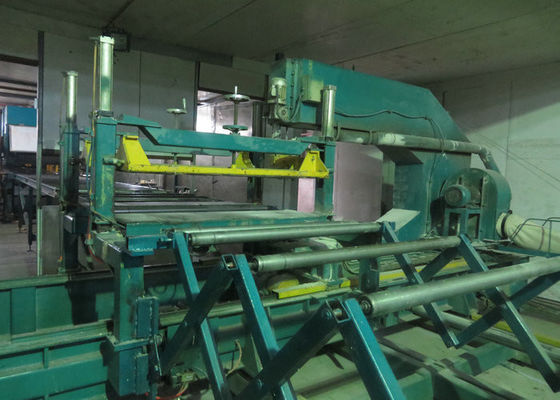

Cutting


Type

Non-stop saw cutting
PU Sandwch Panel Production Line Automatic Continious Online Foaming

Blade materialCrMnSi
Diameter

500mm

WorkingMotor type

Stacker


Type

Manual
PU Sandwch Panel Production Line Automatic Continious Online Foaming


Auto(option)
PU Sandwch Panel Production Line Automatic Continious Online Foaming


Length1.5m-2m6m or 12m

PLC


Main itemParameter detail
PLC

Delta(standard) or according to your request
PU Sandwch Panel Production Line Automatic Continious Online FoamingPU Sandwch Panel Production Line Automatic Continious Online Foaming

InverterChina brand(standard) or according to your request
Touch screenMcgs(standard) or according to your request
EncoderChina brand(standard) or according to your request
Voltage/HZ/Phase380v/50-60hz/3phase

Hydraulic pump


Main ItemParameter detail
Motor

3kw China brand or according to your request
PU Sandwch Panel Production Line Automatic Continious Online Foaming

PumpChina brand or according to your request
Solenoid valveChina brand or according to your request
Cooling system

Cooling fan
PU Sandwch Panel Production Line Automatic Continious Online Foaming

PU Sandwch Panel Production Line Automatic Continious Online Foaming
