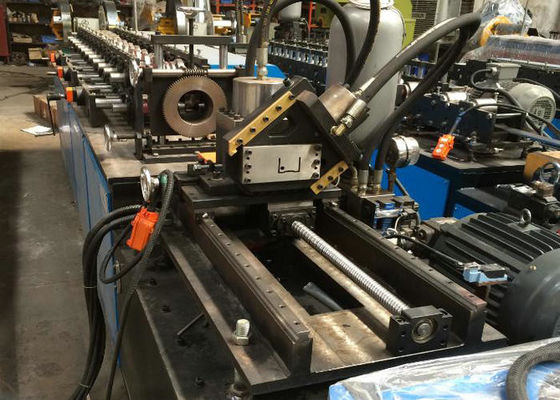

Metal stud and track roll forming machine Drywall galvanized sheet light keel

Metal stud and track roll forming machine Drywall galvanized sheet light keel
Metal stud and track roll forming machine Drywall galvanized sheet light keel Metal stud and track roll forming machine Drywall galvanized sheet light keel Metal stud and track roll forming machine Drywall galvanized sheet light keel Metal stud and track roll forming machine Drywall galvanized sheet light keel

Large Image :  Metal stud and track roll forming machine Drywall galvanized sheet light keel

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY20-38
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Metal stud and track roll forming machine Drywall galvanized sheet light keel

Description
Product Name: Drywall Galvanized Sheet Light Keel Metal Stud And Track Roll Forming Machine Cutting Type: Flying Cutter
Warranty: 2 Years Lifetime: 10years
Roller Material: Cr12 Shaft Diameter: 70mm
High Light:

profile roll forming machine

,

metal stud roll former

Metal stud and track roll forming machine Drywall galvanized sheet light keel



Working flow


Decoiler------feeding------roll forming---------punching-------cut to length-----output table



Profile Drawing



Metal stud and track roll forming machine Drywall galvanized sheet light keel 0



Machine Components



De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set



Parameter

3T manual decoiler:

Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

Forming section

Profile steel thickness 1.5mm carbon steel and stainless steel
Main motor power: 4KW, AC motor, side motor to save space (Brand: Guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:11stations +1 station of rectify
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ¢56mm material: SAE1045
Machine roll forming speed: 0-15m/min
Transmission: by chain, 1.0inch double line

Post cutting :

Hydraulic power: 3KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm




Hydraulic station:

Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

Metal stud and track roll forming machine Drywall galvanized sheet light keel 1

Control system

1) Programmable setting of profile length and quantity
2) Automatic stopping of the equipment after completion of the cutting programme.
3) Operating system language: English and Chinese
4) Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5) PLC brand: Panasonic

Working conditions
1. Machine size 10m x 1.2m (L XW)
2. Working size 20m x 2.5m (LXW)
3. Power supply 8.5kw
4. Frequency 50-60HZ
5. Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8. Lift device 3-5t forklift or crane








Metal stud and track roll forming machine Drywall galvanized sheet light keel 2



Metal stud and track roll forming machine Drywall galvanized sheet light keel 3
