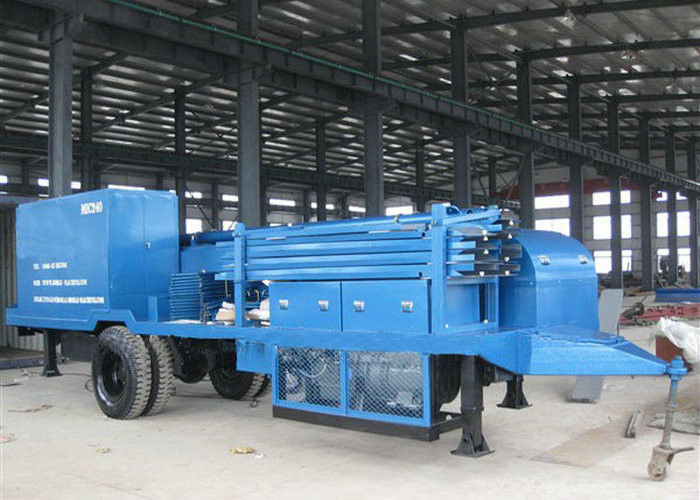

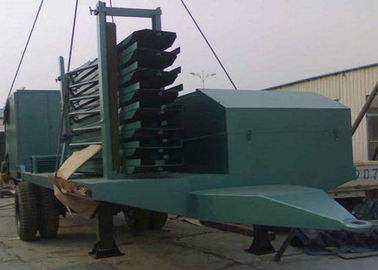

Product Details:
|
| Product Name: | Galvanized K Span Super Arch Sheet Roof Cold Roll Forming Machine | Driven System: | Chain Or Gear Box |
|---|---|---|---|
| PLC: | Delta | Usage: | Roof |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | k span forming machine,automatic roll forming machine |
||
Working flow
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
| 7 | Crimping machine | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |

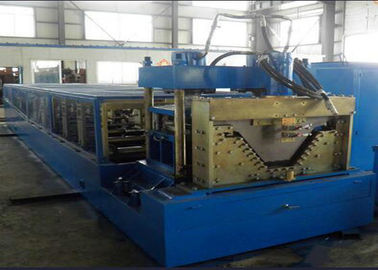

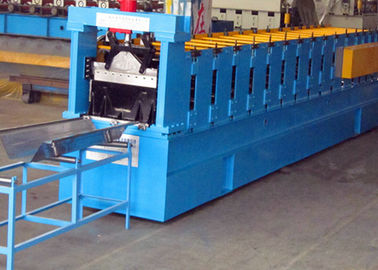

roll forming
(1) Material thickness: 0.6-1.5mm
(2) Rollers: 13Groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: No.45 steel after treatment
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power:5.5kw
(9) Rolling Speed:About10 m / min
(10) Driven type: 1.2＂Chain
(11) The depth of the groove:203mm
(12) Max span:38m
Cutting
(1) Type: Mechanical cutting
(2) Material for Cut-Off Modular:Cr12 steel after treatment
(3) Power:3kw
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
PLC
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: made in china
(3) Encoder Brand: Omron
(4) Length Error: ±2mm
| Name | Amount | Usage |
| Sewing machine | 1 | Assembling the sheets |
| Core shaft | 2 | Roll the sheets |
| Coil cradles | 2 | Sheet roll support |
| Straight sheets cradle | 8 | Plate supporter |
| Arch sheets cradle | 8 | Plate supporter |
| Straight sheets side cradle | 8 | Plate supporter |
| suspender | 3 | Lifting |
| Hanger | 8 | Lifting |
| Clamp | 8 | Bait sheets |
| Driving chains | 3 | To roll the gears |
| Chain links | 6 | To link the chain |
| Super pliers | 2 | Bait sheets |
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
