Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS

Certification
Good quality Roof Tile Roll Forming Machine for sales
I'm Online Chat Now

Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS

China Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS supplier
Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS supplier Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS supplier Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS supplier Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS supplier

Large Image :  Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS

Product Details:

Place of Origin: Hebai,China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-70

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard
Delivery Time: 35 work days
Supply Ability: 15 sets/month
Contact Now
Detailed Product Description
Name: Automatic Hydraulic Cold Steel Shutter Door Roll Forming Machine Raw Material: Steel
Warranty: 2 Years PLC: Delta
Color: As Your Require Cutting Type: Hydraulic

Automatic Hydraulic Cold Steel Shutter Door Roll Forming Machine



Product Information:



Shutter door machines can produce steel shutter door slats in galvanized sheet, pre-painted sheet or stainless steel sheet. Steel shutter door slats are used as the doors for work plants and shops because of durable use, space saving, low cost and low noise. The complete roller shutter door forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the shutter machine produces it automatically. The machines are easy to operate and running stable.



Machine Details:



Composition Detail

Decoiler

1. (1) Max. Width: 300 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Max. Loading Capacity: 3000 kg

Revising Device





(1)Rollers: 1 group

(2)Material for roller: 45# steel polished and coated with chrome HRC55-60°

(3)Functon:it uses for revising the finished product to make the product straight.

Roll Forming

(1)Material Thickness: 0.6-1.2mm

(2)Rollers: 14Groups
(3)Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4)Material for shaft: high grade No.45 steel after treatment

(5)Diameter of shaft: 65mm

(6)Frame panel thickness: 14mm

(7)Bottom frame: 36# H-section steel
(8) Motor Power: 5.5 kW
(9) Rolling Speed: about 10m/min

(10)Driven type:1.0"Chain

CUT-OFF DEVICE

(1)Type: mould cutting

(2)Material for Cut-Off Modular:Cr12 steel
(3)Hardness for Heat Treatment:HRC55 – 60°
(4)Motor: 3 Kw



PLC Control System



(1) PLC Brand: Delta
(2) Encoder Brand: Omron

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Product Rack

(1)Length: 2m

(2)Type: manual without power

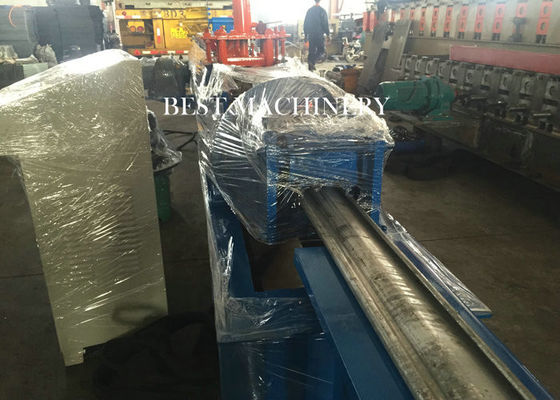

Machine Assemble:



Automatic Hydraulic Shutter Door Cold Steel Roll Forming Machine CE BV SGS

About us:



Before ordering:



We can help to analyze the machine in your market. Which one is popular and which one will be popular.

Then your product is hot sale .



We can confirm all details of the roll forming machine together, including the drawing, thickness of

material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.



During production:



We can send the pictures to show you the schedule of your roll forming machines.

We will show you my blogger account for you to learn knowledge of roll forming machine if you would like

We will ask you what color of the roll forming machine body. Produce the machine under your suggestion



After-sale service:



If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
