Customized Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty

Certification
Good quality Roof Tile Roll Forming Machine for sales
I'm Online Chat Now

Customized Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty

China Customized  Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty supplier
Customized  Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty supplier Customized  Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty supplier Customized  Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty supplier Customized  Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty supplier Customized  Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty supplier

Large Image :  Customized Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty

Product Details:

Place of Origin: China
Brand Name: CHBEST
Certification: CE, BV, SGS
Model Number: YX-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD25500-35500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 set/month
Contact Now
Detailed Product Description
Name: Customized Building Materil Long Arch K Span Roll Forming Machine Condition: New
Material: GI, PPGI, AL Usage: Roof Building
Place Of Origin: Hebei, China Warranty: 2 Years
Voltage: As Your Requst Color: As Your Request
Customized: Yes Driven By: Chain

Customized Building Materil Long Arch K Span Roll Forming Machine

1.Machine Brief:

1)Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

2)Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable, maintenancefree

3)We can make and design will kinds of roll forming machine according to customer's request.



2.Machine component :











Machine component

5 ton passive de-coiler 1 set
Main roll forming machine 1 set
Control box 1 unit
Hydraulic station 1 unit
Out table 2 units
Arch machine 1 unit
Sew machine 1 unit
Portable wheels 2 unit
Spare parts



3.Technical Data:

Feeding Width: 914mm
Effective Width: 610mm
The depth of the groove: 203mm
Thickness of the coil: 0.8-1.2mm.

Size: 10400mm × 2250mm × 2300mm
Total Weight: about 12000KG
Main Motor Power: 15.7KW forming power is 7.5kw ; bending power is 3.0kw; cutting power is 3.0kw; conical power is 2.2kw
Working Speed: Straight sheet: 15m/min
Arch sheet machine: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel
Step of rollers: 13 steps
Feeding Width: 914mm
Effective Width: 610mm
The depth of the groove: 203mm
Thickness of the coil: 0.8-1.2mm
Operating factor of the panel: 66%
Proper span: ≤38m

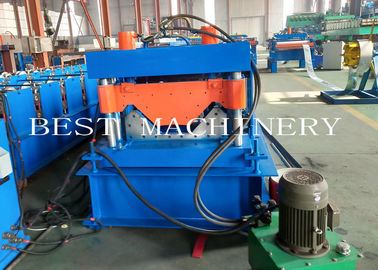

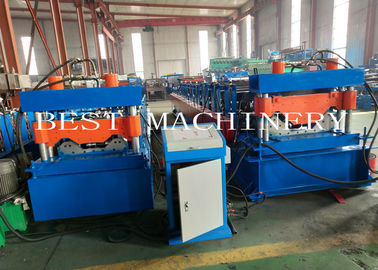

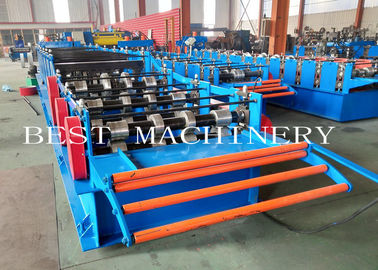

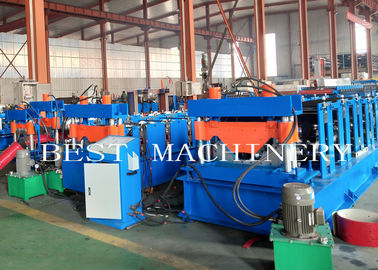

4.Machine photos:

Customized  Building Material Long Arch K Span Roll Forming Machine 2 Years WarrantyCustomized  Building Material Long Arch K Span Roll Forming Machine 2 Years WarrantyCustomized  Building Material Long Arch K Span Roll Forming Machine 2 Years WarrantyCustomized  Building Material Long Arch K Span Roll Forming Machine 2 Years Warranty



5. FAQ:

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
