Product Details:
|
| Place Of Origin: | Hebei,China | Name: | Garage Slate Door U Shape Channel Guide Roll Forming Making Machine |
|---|---|---|---|
| Color: | As Your Request | Cutting Type: | Hydraulic |
| Customized: | Yes | Control System: | PLC |
| Side Wall Thickness: | 20mm | Voltage: | As Your Request |
| High Light: | cold roll forming machine,profile roll forming machine,slate door roll forming |
||
Garage Slate Door U Shape Channel Guide Roll Forming Making Machine
Working Flow:
Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
Technical Parameters
| No | Item | Parameter | Note | |
| 1 |
Suitable
Material |
Type | Steel sheet | |
| Raw material | Thickness: 0.7-1.0 mm | |||
| 2 | Product Specifications | Detail as the attached drawing | ||
| 3 | Power Requirement | Type | 380V/3PH/50HZ | |
| Main motor power(KW) | 3 | |||
| Cutting power(KW) | 3 | |||
| 4 | Forming Speed(m/min) | 8-12 | ||
| 6 | Forming Stand | 11 | Depend on actual design | |
| 7 | Forming Shaft Diameter(mm) | 65 | Depend on actual design | |
| 8 | Type of Cutting | Roll-formed and length-set cutting | ||
| 9 | Control System | Mitsubishi PLC and inverter | ||
| 10 | Run Out Table | 2m | ||
| 11 | Installation Dimension(m) | 8X1.5 | Without the panel length | |
| 12 | Total Weight(T) | 2.5 | Depend on actual design | |

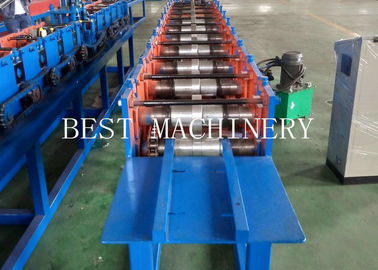

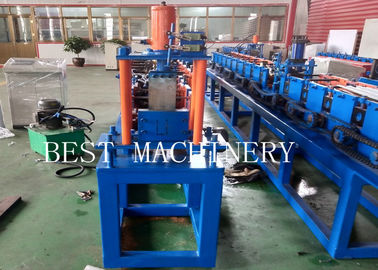

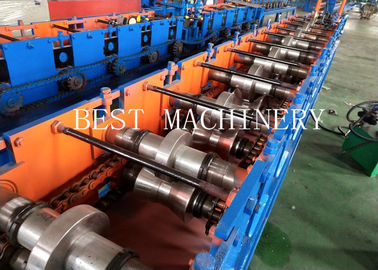

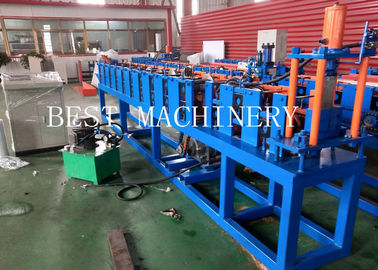

Machine photos:
Machine Loading:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest
70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa , Roundtrip ticket and suitable
accommodation, also buyer should pay the salary 100USD/day.
Warranty: 12 months limited warranty
During warranty, parts are free but buyer pay for the shipping fee
Period of validity: 30 days
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
