New Condition Deck Sheet Floor Roll Forming Machine PLC Control System

China New Condition Deck Sheet Floor Roll Forming Machine PLC Control System supplier
New Condition Deck Sheet Floor Roll Forming Machine PLC Control System supplier New Condition Deck Sheet Floor Roll Forming Machine PLC Control System supplier New Condition Deck Sheet Floor Roll Forming Machine PLC Control System supplier New Condition Deck Sheet Floor Roll Forming Machine PLC Control System supplier

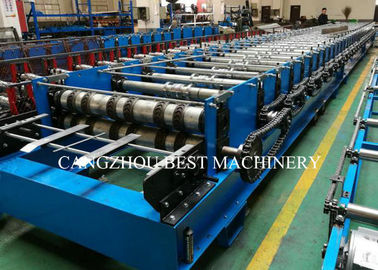

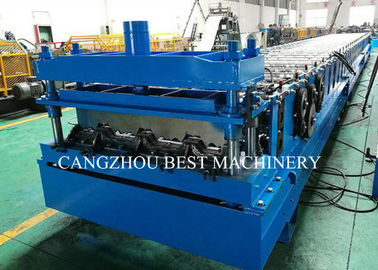

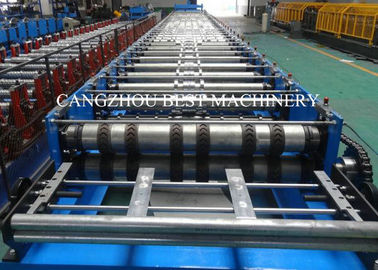

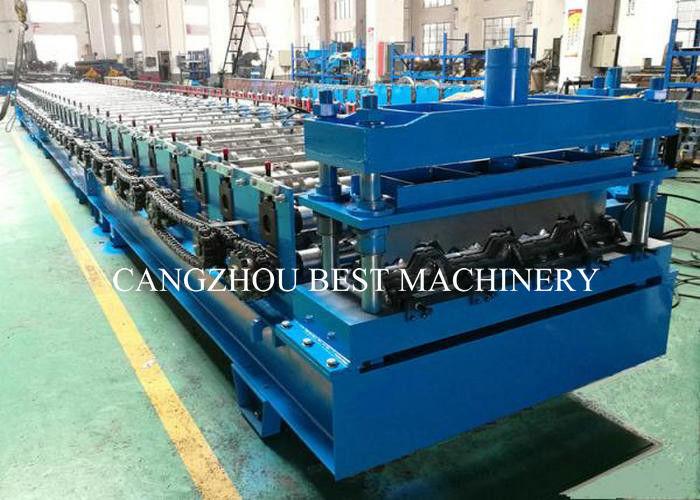

Large Image :  New Condition Deck Sheet Floor Roll Forming Machine PLC Control System

Product Details:

Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY-834

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Product Name: After-sales Service Provided New Condition Deck Sheet Floor Roll Forming Machine Machine Dimention: 11.5mx1.4mx1.4m
Driven System: Chain Or Gear Box Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
Volatge: 380v Color: As Your Request

After-sales Service Provided New Condition Deck Sheet Floor Roll Forming Machine


Machine components

De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set

Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm



Roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)

Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming



Forming stations 20-38 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ80-90mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 15kw-22kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm



Cutting

Type

bearing sliding type


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision


Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type



Stacker

Type

Manual



Auto(option)



Length 1.5m-2m 6m or 12m



PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase



Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan



Certificate

New Condition Deck Sheet Floor Roll Forming Machine PLC Control SystemNew Condition Deck Sheet Floor Roll Forming Machine PLC Control SystemNew Condition Deck Sheet Floor Roll Forming Machine PLC Control System
