|Name:||Manual Adjustable 3mm Thickness C Purlin Roll Forming Making Machine||Color:||As Your Request|
|Warranty:||2 Years||Cutting Type:||Hydraulic|

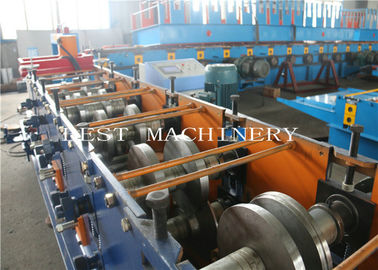

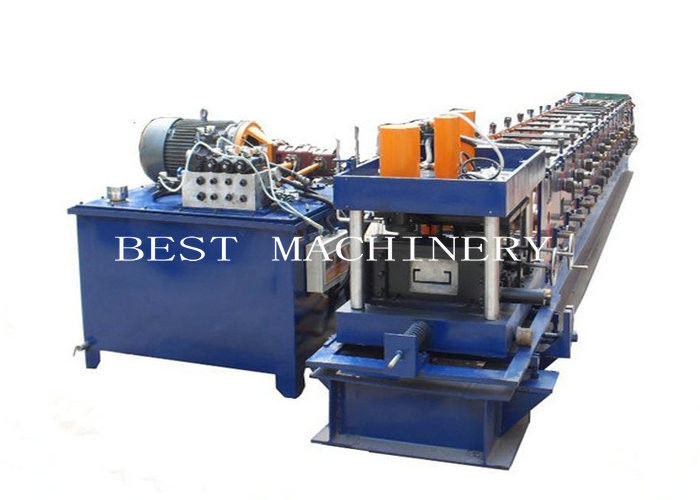

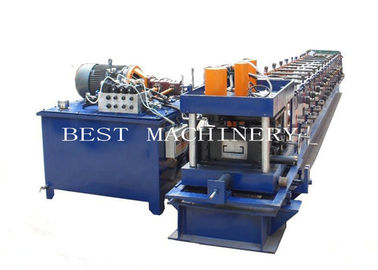

Manual Adjustable 3mm Thickness C Purlin Roll Forming Making Machine
Features of C Purlin Roll Forming Machine
The C shaped purlin formed by C purlin roll forming machine has excellent anti-bending property and are easy to install. Machine adopt cast iron structure, which will increase the strength of the machine.
The processing of Punching & Cutting has different type for choosing: Post-Punching & Post-Cutting, Pre-Punching & Post Cutting, Pre-Punching & Pre-Cutting.
Applications of C Purlin Roll Forming Machine
The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Process Flow of C Purlin Roll Forming Machine
Uncoiler --- Feeding --- Straightening --- Roll Forming ---Punching---Cutting--- Output table
|Weight capacity of decoiler||3.5T|
|Raw material /feeding sheet material||colored steel & galvanized steel|
|Roller material||cr15 high grade steel|
|Shaft material||cr15 high grade steel|

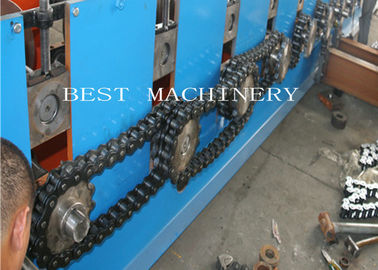

|Kind of drive||chain drive|
|Cutting system||automatic hydyaulic cutting|
|Cutting blade material||Cr 12 high grade steel|
|Frame material||300 H-high grade steel|
|Control system||totally automatic PLC control system|
|Main power||18.5 kw|

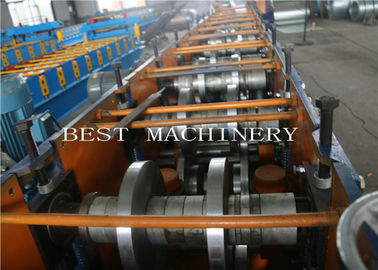

|Roller stations||13-18 rows|
|Speed of production||8-12m/min|
|Thickness of colored steel||1.5-3mm|
|Suitable Power||380V, 50 Hz, 3 phase or according to your need.|
|Screen||7 inch touch screen, easy to operate.|
Well-adapted to various conditions, such as moisture,
Delta VFD-M. It has the advantage of slowing down before cutting,
to ensure the length accuracy (±1mm,
far better than industrial standard ±3mm).
|Omron, made in Japan.|
|It features with high accuracy and stability.|
Packing and Loading:
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
Over 20 years' rich experience!
a.Specialized in roll forming machine since 1998.
b.Keeping improving the quality.
2. Low price
Save your money from every part!
a. Low labor cost;
b. Convenient transportation;
c. Complete supporting industries.
Ensuring high accuracy and easy to operate!
Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
4. OEM / ODM
Customers’design, color & logo are also accepted!
Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service
Keep troubles far away from you!
Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
