PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier

China PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier supplier
PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier supplier PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier supplier PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier supplier PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier supplier

Large Image :  PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier

Product Details:

Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY475

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 50-60 days
Supply Ability: 10sets/month
Contact Now
Detailed Product Description
Product Name: Metal Steel Profile W Beam Crash Barrier Highway Guardrail Roll Forming Machine Cutting Type: Hydraulic
Punching Type: Hydraulic Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years

Metal Steel Profile W Beam Crash Barrier Highway Guardrail Roll Forming Machine



One machine produce two profiles, 2 beams and three beams,rollers on shaft, when change different profile, just take off the whole groups rollers.


Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table


COMPONENT FOR Highway Guardrail/Traffic Barrier Forming Machine
Name
Quantity
Units
Decoiler
1
Set
Main Machine
Feeding device
1
Set
Roll forming system
1
Set
Cut Equipment
1
Set
Hydraulic system
1
Set
Electric control system
1
Set
Supporter/Automatic Stacker
1
Set

Machine Specifications

Decoiler

Type: Hydraulic

Capacity : 5Ton -10Ton

ID-OD: 450~508mm

Max width: 1250mm

Above parameters can be designed as your needs .

We also have manual type for free .



Roll forming machine

Material Thickness: 0.3-0.8mm PPGI and GI

NO. of roller Stations: 14groups
Material for Rollers: high grade Gcr15 steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 90mm

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 22kw

Driven type: Chain or gear box
Speed:8-12m/min



Cutting device

Usage : To control machine cutter work

Power: 5.5kw

Solenoid values

Hydraulic cutting type



Control system

PLC : Delta or custom brand

Screen : Touch screen

Language: English ,Chinese

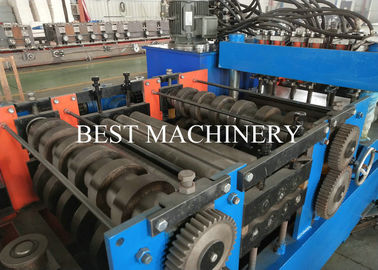

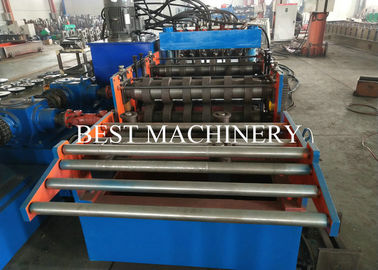

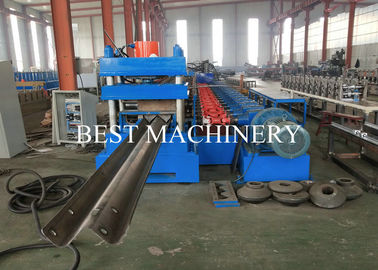

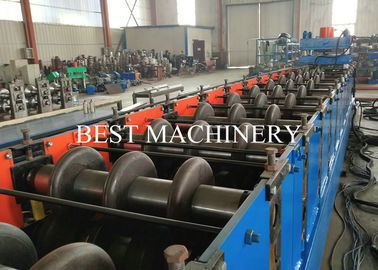

PLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash BarrierPLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash BarrierPLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash BarrierPLC Highway Guardrail Roll Forming Machine Metal Steel Profile W Beam Crash Barrier







Payment terms and after-sale service:

1) FOB Tianjin Port  or CIF
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 60 working days.
4) Guarantee period: 18months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 100 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
