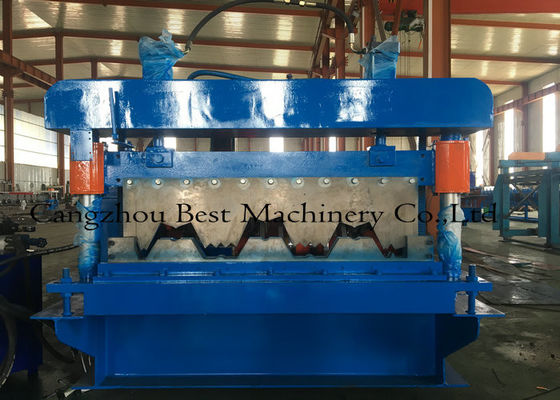

915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type

Certification
Good quality Roof Tile Roll Forming Machine for sales
I'm Online Chat Now

915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type

China 915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type supplier
915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type supplier 915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type supplier 915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type supplier 915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type supplier 915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type supplier

Large Image :  915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type

Product Details:

Place of Origin: China
Brand Name: BEST
Certification: CE/ISO
Model Number: BEST-915

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Covered by plastic film
Delivery Time: 30 days
Supply Ability: 10
Contact Now
Detailed Product Description
Material Thickness: 0.7-1.5mm Rollers: 28 Groups
Material for Rollers: GCR 15 Steel Hardening And Coated With Chrome HRC55-60° Material For Shaft: 90mm
Frame Panel Thickness: 20mm Driven Type: 2.0"Chain

High Quality 915 MM Building Structure Deck Floor Roll Forming Machine

Steel decking profile of various shapes and width. The formed structure bears more strength and can be easily fit with each other. They can be easily aligned with each other. The metal decks can bear high tensile loads. They can be used for the walls roofing’s and floorings of any warehouses, storage areas, factories, etc. They are cost effective than concrete structures and easily installing structure. Due to its light weight, transportation has become very easier.



915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type



Name of Roll Forming Machine 688 Floor Deck Roll Forming Machine Floor Tile Material Making Machine
Profile Drawing or Sample Picture 36.jpg
1 Suitable raw material PPGI/PPGL/GI/GL Steel Coils
2 Thickness of coil sheet 0.3-0.8mm
3 Feeding Coil width 1000mm
4 Effective width 688mm
5 Under frame 400H-beam
6 Diameter of Soild shaft 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
7 Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

8 Thickness of middle plate Guide pillar memorial archway
9 Forming stations 26
10 Drive type By chain(1.0 inch) link bearing model 6210
11 Power of main motor 7.5kw with Cycloidal reducer, Lichao, Shanghai
12 Power of pump station 4kw, Lichao, Shanghai
13 Forming speed About 15-20m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA, TAIWAN / Mitsubishi, Japan
16 Material of cutting blade Cr12Mov, quenching 58-62℃
17 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial

standard ±3mm).

18 Switch CHNT
19 Transducer SAJ











































































































915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type



915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type



915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type



915 MM Building Structure Floor Deck Roll Forming Machine 2.0"Chain Driven Type



FAQ:

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world. We guarentee your machine running well in order to make your business running well.

Q3. Do you sell only standard machines?
A3: No, customized service will be provided for all of our customers. Most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts
replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
