Product Details:
|
| Name: | Metal Lock Portable Standing Seam Roll Forming Machine For Roof Sheet | Cutting Blade: | Cr12 |
|---|---|---|---|
| Shaft Material: | 45#steel | Certification: | CE, BV, SGS |
| Station Quantity: | 6-12 Groups | Brand Of PLC: | Delta Made In Taiwan |
| Place Of Origin: | Hebei,China | Material Of Rollers: | 45#Steel |
| Key Selling Points: | Automatic | Tolerance: | +- 0.5 Mm |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

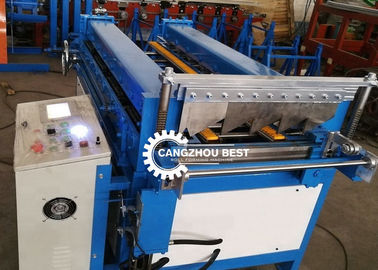

Metal Lock Portable Standing Seam Roll Forming Machine For Roof Sheet
1. Parameters of roll forming machine
| Raw material | |
| material spec | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.2-0.8 mm |
| material expand width | 1000mm |
| Efficiency width | 675mm |
| Machine details | |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement |
| main frame |
350 H steel |
|
forming steps |
24rows |
| hydraulic station power | 4 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| hydraulic oil |
40# hydraulic oil |
2. Details:

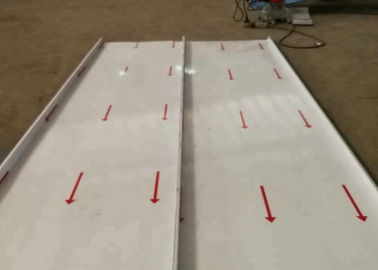

A Sheet Specifications
| 1 | Coil Type | PPGI GI |
| 2 | Width | 1250mm |
| 3 | Thickness | 0.3-0.8mm |
| 4 | Yield stress | Q235 |
| 5 | Effective | 900mm |

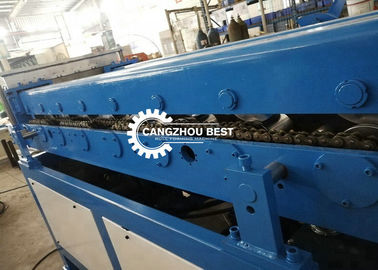

B Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 15, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
|
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
3. Our Product:
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
4. Why Choose us/Simple advantage in words
| 1 | Direct Factory in China Since 2008 |
| 2 | Good design and professional engineers more than 20 years experience |
| 3 | CE SGS BV AS--- authentication available |
| 4 | Overseas service available/one year quality guarantee |
| 5 | Good credit |
| 6 | Many other designs available and special design available |
