Product Details:
|
| Place Of Origin: | Hebei,China | Certification: | CE, BV, SGS |
|---|---|---|---|
| Name: | Building Material Zinc Metal Glazed Roof Tile Roll Forming Machine PLC Control | Raw Material: | GI,PPGI,AL |
| Shaft Diameter: | 70mm | Condition: | Yes |
| Color: | Blue | Use: | Roof Building |
| Cutting: | Hydraulic | Control System: | PLC |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
Building Material Zinc Metal Glazed Roof Tile Roll Forming Machine PLC Control
1. Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
2. Main parameters
| No. | main parameter of roll forming machine | ||
| 1 | Suitable to process | Color steel plate | |
| 2 | Width of the plate | 1200mm | |
| 3 | Rollers | 14 rows | |
| 4 | Dimensions | 8.0*1.6*1.5m | |
| 5 | Power | 4+3kw | |
| 6 | Thickness of the plate | 0.3-0.8mm | |
| 7 | Productivity | 8-12m/min | |
| 8 | Diameter of the roller | Φ80mm | |
| 9 | Weight | About 45.0 T | |
| 10 | Voltage | 380V 50Hz 3phases | |
| 11 | Rolling material | Carbon Steel 45# | |
| 12 | Material of the cutting plate | Cr12 | |
| 13 | Processing precision | Within 1.00mm | |
| 14 | Control system | PLC control | |
3. Machine production:
Decoiler:
1) Un-coiler: 5 tons passive
2) Insider diameter of the un-coiler: 450-550mm
Cutting:
1) Pressing and cutting way: Hydraulic cut.
2) Hydraulic power: 3kw hydraulic system.
3) Blade Material: CR12Mov with heat treatment HRC58-62.
Forming:
1) Material Thickness: 0.3-0.8mm PPGI and GI
2) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
3) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
PLC Control:
1) Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
2) Control panel: Button-type switch and touch screen
3) The language in the touch screen: English and Chinese
4) Unit of length: millimeter (switched on the control panel)
Hydraulic Pump:
1) Motor power: 3 kw
2) Oil type: 46# hydraulic oil
3) Pump brand: China brand
Output table:
1) It adopts welded steel and supported roller to transmit the products.
4. Our Service:
Pre-sale Service
1. Send you invitation letter, If you wanna visit our factory and check the machines.
2. Good Quality Manufacturer competitive price Quick Response Reliable Service for you.
Selling Service
1. Short delivery time after deposit 30-40 days.
2. Email you the production schedule and make prompt delivery for you.
3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.
4. Always be here for your service 12 hours per day.
After-sale Service
1. We welcome all feedback about our products and prices and services from our customers.
2. Any questions, please contact with us freely by E-mail or Telephone.
5. Our advantage:
|
Our machine |
Influence of the machine |
|
|
Main forming machine body |
High strength H350 or H400 steel. machine through milling machine after welding |
Sturdy and durable, ensure the plate standard |
|
Material of the roller |
High grade No.45 forged steel |
Ensure the forming effect of the panel and the use age will be longer,the surface of the panel |
|
Material of the cutting |
GCr12 steel with quenched treatment |
Cutting is out of shape not easily and use age will be longer,the panel size precision |
|
Material of the active shaft |
High grade solid No.45 carbon steel, Shaft diameter is 72mm. |
Improve the integrated mechanic feature of the shaft and keep product standard |
|
Control system |
PLC control system,some elements are imported from Japan and Germany |
Machine become more accurate and more stable |

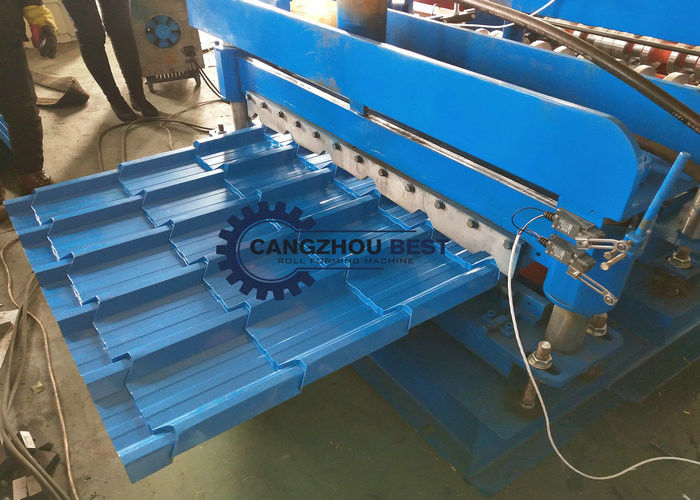

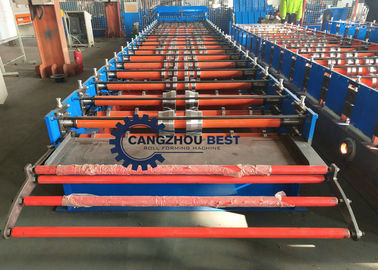

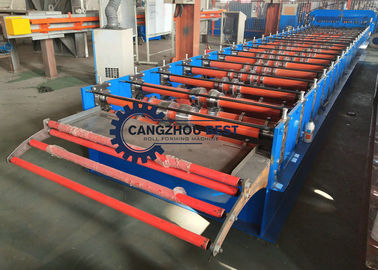

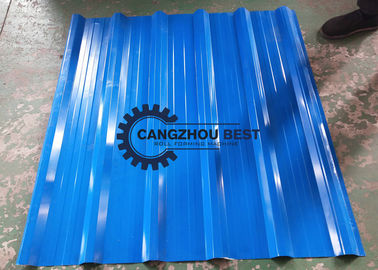

6. Machine Photos:
