Product Details:
|
| Place Of Origin: | Hebei, China | Certification: | CE BV SGS |
|---|---|---|---|
| Name: | Standing Seam Self Lock Metal Roofing Clip Panel Roll Forming Machine For Sales | Roller Material: | 45#steel |
| The Shaft: | 70mm | Cutting Blade Material: | Cr12 |
| Bottom Frame: | 350H Steel | Control System: | PLC |
| Voltage: | 380v 50hz 3phase | Side Panel: | 20mm |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

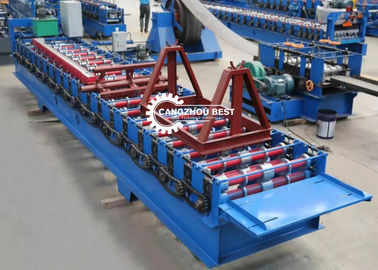

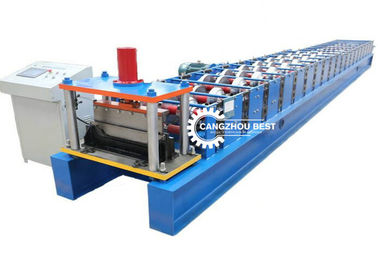

Standing Seam Self Lock Metal Roofing Clip Panel Roll Forming Machine For Sales
1. Company information:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
2. Machine Details:
| 1. Profile |
1 Feeding width: 1000mm 2 Effective width: 820mm 3 Material thickness: 0.3-0.8mm |
| 2. Process flow |
Decoiling--feeding---forming---cutting---production
|
| 3.Manual Decoiler |
1 Material coil inner diameter: 450mm-700mm 2 Max coil width: 1200mm 3 Carrying capacity: 6.8T
|

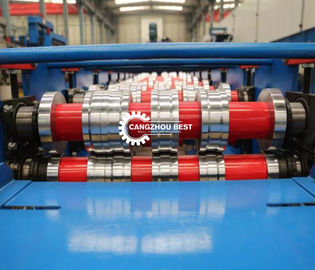

| 4.Forming Device |
1 Number of forming steps: 15 steps 2 Shaft material: 45# steel with harden treatment, outer diameter 75mm 3 Roller material: 45# steel 4 Main motor power: 5.5kw 5 Forming speed: 8-12m/min(So year production is about 520000 pieces generally) 6 Voltage: 380V/50Hz/3 phrase |

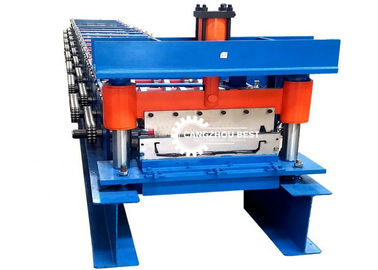

| 5.Cutting Device |
1 hydraulic cutter 2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62°C 3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. |
| 6.Controlling Device |
1 screen: 5.7 inch Taida screen from Taiwan 2 PLC: Taida DVP14ES from Taiwan |
| 7. Hydraulic | 1 Advanced hydraulic system from Taiw |
| 8.Simple output frame | simple frame weld bu #8 U bar, 1 pcs of 3m |
| 9.Payment and terms |
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
| 10.Warranty | One year, and we will provide the technical support for the whole life. |
|
11. Packing |
Container packing of the line suitable for overseas shipping The subject can be loaded in one 40’ GP container. Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box. |
| 12.Assemble, train the machine | It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time |
|
13. Maintain |
It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain). |
3. Parameters
| NO | Item | Para | Remark | |
| 1 | Suitable Material | Type | Color Steel Sheet | |
| Thickness (mm) | 0.4 to 0.7 | |||
| Yield Strength (Mpa) | 230 to 300 | |||
| (mm) | ≤1250 | |||
| Capacity of Decoiler | 5T/8T/10T | According to Customer | ||
| 2 | Material of Rollers | No.45 Hard Chromeplate | ||
| 3 | Line Speed (m/min) | 20/30/50/60 | ||
| 4 | Roller Shaft Supporting Structure | Guiding Column | ||
| 5 | Electric Control System | PLC | Brand: Mitsubishi or Siemens | |
| 6 | Operation Desk | Touch Screen + Button | ||
4. FAQ:
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
