Product Details:
|
| Product Name: | Color Steel Africa Profile Double Layer Roofing Sheet Roll Forming Machine | Color: | Blue Or According To Your Requirement |
|---|---|---|---|
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Lifetime: | 10years |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||

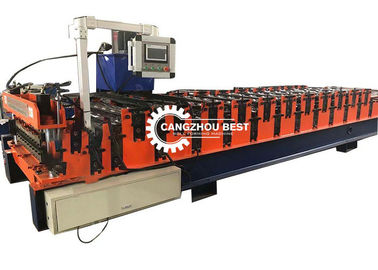

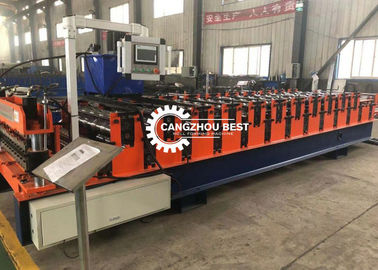

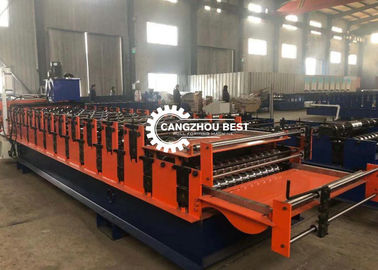

Color Steel Africa Profile Double Layer Roofing Sheet Roll Forming Machine
Components
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |

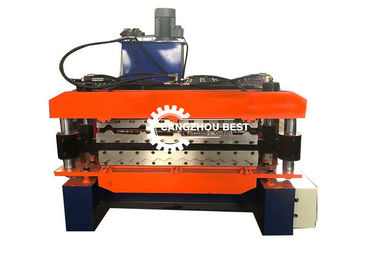

| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Technical process:
Automatic un-coiling →feeding guide →main roll forming → hydraulic cutting →outputting
Roll Forming Machine
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: About 8500 1650 1500 mm (L*W*H)
Weight of main part: 6.5 tons
Voltage : 380 V 50 HZ 3 PHASE(As customer’s need)
Roller fixer : Middle plate
Frame : 350 H steel welded
Drive mode: Chain
Material of rollers: 45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80 mm
Number of rollers : 13 rollers(Up layer)15 rollers(Down layer)
Cutting device
Feature : Ensure stability, precision and cutting speed
It is used to make the step , the glazed tile's final formed.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Function : Automatic cutting controlled by PLC
Material of blades : Cr 12 quenched
Power supply : Hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.
Hydraulic Station
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Hydraulic motor Power: 4 kw
Hydraulic oil: 46# hydraulic oil
Volume: 30 L
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic
Control System
1. Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.
2. Voltage: 380V 50 HZ 3 PHASE (As customer’s need)
3. Language: English and Chinese
4. Automatic length measurement
5. Automatic quantity measurement
6. Length Tolerance: 3 m±1.5 mm
7. Length inaccuracy can be amended easily.
8. Unit of length: millimeter (switched on the control panel)
9. Computer operating panel: touching screen and button together.
Warranty
1. One year warranty, whole life technical support.
2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.
Packing*Loading
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
