Product Details:
|
| Name: | Metal Roofing Pofile Steel Sheet Roll Forming Machine With PPGI/GI Material | Color: | As Yourrequire |
|---|---|---|---|
| Speed: | 8-12m/min | Control System: | PLC |
| Shaft Material: | 45# Steel | Warranty: | 2 Year |
| High Light: | roofing sheet making machine,metal sheet roof roll forming machine |
||
30m/min Corrugated Metal Roofing Sheet Roll Forming Machine In China
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
Decoiler
Max. Width: 1250 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs
Type: Manual Or Hydraulic (Optional)

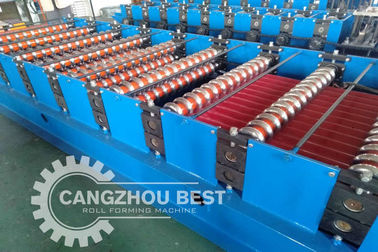

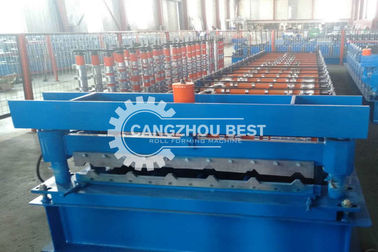

Roll Forming Machine
Roll forming machine
Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;
Shaft: manufactured with 45# high grade steel by CNC machine tools;
Supporting frame: steel wallboard to guide the forming station bearing basement;
NO. of roller Stations:up 18groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Frame panel thickness:14mm
Bottom frame: 36# H-section steel
Cutter device
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Working Flow
Decoiler------feeding -------roll forming------cut to length-----output table
Packing Detall
| (1) |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| (2) |
All Components Fixed by steel wire with Container. |
| (3) |
electrics devices be packed with wooden box.for Standard export packing |
| (4) |
rollers were painted with oil and packed with plastic film. |
Company Profile
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer, has a professional engineer for technical guidance. Engineers engaged in cold bending mechanical equipment design for more than 20years, has a wealth of design concept. Can provide users with a special type of design and manufacture. At the same time to sell equipment for installation, guidance, production, commissioning one-stop service.
After-Sales-Service
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
