Product Details:
|
| Name: | Hydraulic Cutting 50m/min Light Steel Keel For CU Roll Forming Machine | Color: | As Your Require |
|---|---|---|---|
| Voltage: | 380V/50HZ/3PHASE | Material: | PPGI/GI |
| Frame Panel Thickness: | 14mm | Warranty: | 2 Year |
| High Light: | 50m/min light steel keel roll forming machine,cu light steel keel roll forming machine |
||

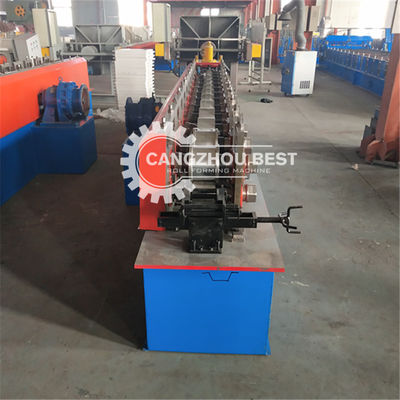

Hydraulic Cutting 50m/min Light Steel Keel For CU Roll Forming Machine
Steel roller shutter door roll forming machine consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system and control system. The roller shutter slat which made by this machine has neat external appearance, even ripples, high utilization and strong strength.
Machine Component
| Decoiler | 1set |
| Roll Forming Machine | 1set |
| Cutting Device | 1set |
| Multi Revsiting | 1set |
| PLC Control Box | 1set |
| Hydraulic Pump | 1set |
| Output Table | 1set |
Decoiler
Max. Width:300 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 3000 kgs
Type: Manual Or Hydraulic (Optional)

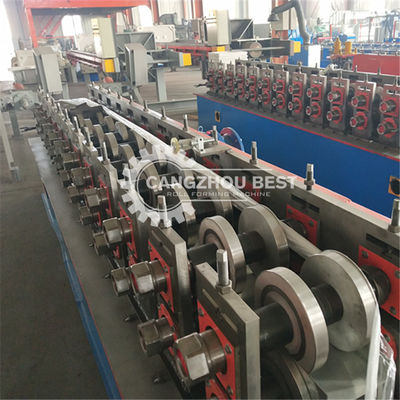

Roll Forming Machine
Material Thickness: 0.6-1.2mm PPGI and GI
Roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 65mm
Bottom frame: 36# H-section steel
Motor Power: 3kw
Driven type: 1.0＂Chain
Diameter of shaft: 65mm
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

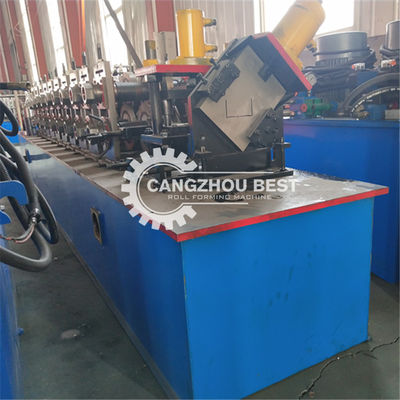

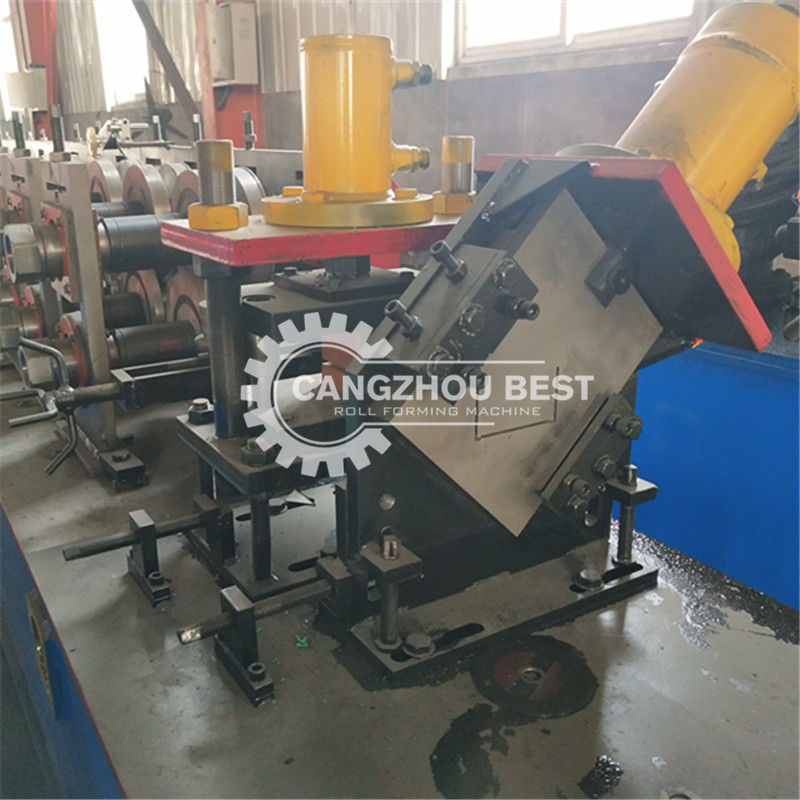

Cutting Device
| Type |
Hydraulic, Automatic Cut-Off |
| Power | 3kw |
| Cutting Blade Material |
Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60° |
Multi Revsiting Device
Rollers: 1 group
Material for roller: 45# steel polished and coated with chrome HRC55-60°
Functon:it uses for revising the finished product to make the product straight.
Control System
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Hydraulic Pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
Output Table
No power type
Length: 2m
Work Flow
Decoiler------feeding------roll forming------cut to length----multi-revising -----output table
Packing Detall
| 1. |
40 GP container ; main machine naked and fastened with iron wire in the container. |
| 2. |
Rollers were painted with oil and packed with plastic film. |
| 3. |
Electrics devices be packed with wooden box.for Standard export packing. |
| 4. |
All Components Fixed by steel wire with Container. |
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q:What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
