Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Dimension(l*w*h): | 6500*1300*1100 |
|---|---|---|---|
| Roller Material: | First Grade 45# Steel/GCr15 | Usage: | Roof Profile |
| Power(w): | 7.5Kw | Name: | Automatic IBR Roof Sheet Profile Roll Forming Machine Manufacturer |

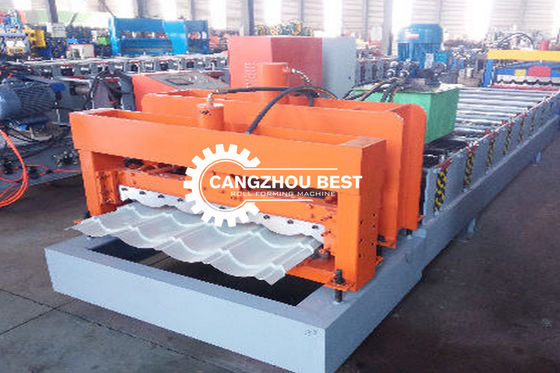

| High Light: | 7.5kw Glazed Tile Forming Machine,828 glazed tile forming machine,glazed tile roll forming machine |
||
Decoiler→Flating→Feeding →Forming→Cut to length→Colletion
No.Main parameter of roof tiles machine south africa
1Suitable to processColor steel plate
2Width of the plate1200 mm and 1220mm
3Thickness of the plate0.3-0.8mm
4De-coiler Manual one, can load 5 tons raw material
5Rollers for forming 14 rows
6Diameter of the roller80mm
7Rolling materialCarbon Steel 45#
8Main motor power4kw
9Productivity8-12m/min
10Cutting methodHydraulic mould cutting
11Material of the cutting bladeCr12
12Hydraulic cutting power 3kw
13Processing precisionWithin 2.00mm
14Control systemDelta PLC control
15Side panel of machine14mm
16Main structure of the machine300 H steel
17Weight About 4.2 T
18Dimensions7.5*1.45*1.1m
19Voltage380V 50
ASA-PVC composite sheet use Super ultra weatherability engineering resin ASA for the surface material by CO-extrusion composite technology, even exposure to the sun UV, moisture, heat, cold, and shock for long time, it is still able to keep its color stable in the natural environment
Feature
1.advantages are superior to other PVC roofing
2.10-year Guarantee the color no fading
3.Aging resistant performance improved, the product to extend the service Iife
4.Glossy surface, Waterproof & self-cleaning
5.The material has higher strength &impact resistance
1. Where is your facotry?
Our factory is in CANGZHOU
2. How many years are you in this line ?
Since 1988, BEST factory established
3. What guarantee can you provide for your product ?
We have over 25 years professional manufacturing, and we will offer after sales service for any quality problem, we are not small factory.
4. Can you help us how to install your product ?
We have our own team and we will offer good after-sale service
5. What is MOQ for your product?
2000 Square meters for each model
6. Can you show the certification of your product?
Yes we can offer different kinds of certification
7. What is your deliver time ?
Around 10-30days. It depends on current production schedule.
8. What is your FOB port?
Beijing port,China.
Main technical parameters
If you have specific requirements, that's no problem,We can meet all your needs.
| No. | ||
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 1250mm or as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Working speed | 8-12m/min, can be 20-25m/min |
| 5 | Main motor power | 5.5kw with cycloidal with reducer |
| 6 | Hydraulic pump power | 4kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 75mm |
| 9 | Roller station | 15 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 3.5T |
| 16 | The machine size | 7000mm*1500mm*1500mm |
