Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | Around 10.0 Tons (depend On Final Design) |
| Use: | Roof | Color: | Client's Request |
| High Light: | 0.5mm shutter door roll forming machine,gi shutter door roll forming machine,Colored Steel shutter roll forming machine |
||
|
NO
|
Item
|
Description
|
|
1
|
Product' sizes
|
According to customer's request
|
|
2
|
Processing material
|
GI
|
|
3
|
Processing thickness
|
0.5-1.0mm
|
|
4
|
Main motor power
|
7.5kw
|
|
5
|
Power of hydraulic station
|
5.5kw
|
|
6
|
Quantity of roller stations
|
14
|
|
7
|
Production speed
|
Approximate 15-25 m/min
|
|
8
|
Diameter of shafts
|
Φ75mm
|
|
9
|
Material of rollers
|
Cr12 steel with vacuum heat treatment HRC57°-60°
|
|
10
|
Material of shafts
|
45# steel quenched and tempered
|
|
11
|
Material of cutting blades
|
Cr12 mould steel with quenched treatment
|
|
12
|
Size of machine
|
Approximate 6500mm(L)×1200mm(W)×1300mm(H)
|
|
13
|
Theoretical weight
|
Approximate 7000KGS
|
|
14
|
Driven method
|
Chain transmission
|
|
15
|
Brand of PLC
|
Yaskawa
|
|
16
|
Cut mode
|
Hydraulic profile cutting
|
|
17
|
Power supply
|
380V 50HZ 3Phases or at buyer's requirement
|
|
Cable tray roll forming machine
|
Ridge Tile Forming Machine
|
|
guardrail roll forming amchine
|
Metal Roofing Roll Forming Machine
|
|
Floor Deck Roll Forming Machine
|
Double Layer Roofing Tile Roll Forming Machine
|
|
Door frame roll forming machine
|
peach post roll forming machine
|
|
Bending Machine
|
C/Z/U purlin roll forming machine
|
|
silo roll forming machine
|
down pipe roll forming machine
|
1. Design: architecture, Interior decoration, structural and landscape design.
2. Manufacture: roof truss, external & internal wall stud, floor deck, staircase, etc.
3. Customization: we can manufacture different machines to fit various requirements from different customers .
Main Specifications
| Description | offered specification |
| Material thickness | 0.7-1.2mm |
| Raw material | Galvanized coils yield strength ≤G250MPa |
| Forming speed | 8-15m/min |
| Decoiler | 3 Ton passive decoiler |
| Material of main shaft | 45# high quality steel |
| Levelling device | 7 roller levelling including 3 top rollers and 4 bottom rollers |
| Cutting | hydraulic cutting; quenching HRC58-62 |
| Motor power of hydraulic station | 4kw |
| Hydraulic station pressurre | 12Mpa |
| Tolerance | 6m+-1.5mm |
| Machine Frame | H Beam Steel |
Working flow
De-coiler—→level device—→main roll forming machine—→ hydraulic cutting—→ run out table
Machine component
3T Passive De-coiler
Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg
Leveling device
1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Max Leveling Raw Material width: 300mm
Hydraulic station
1. hydraulic station pressure: 12MP
2. power of hydraulic station: 4KW

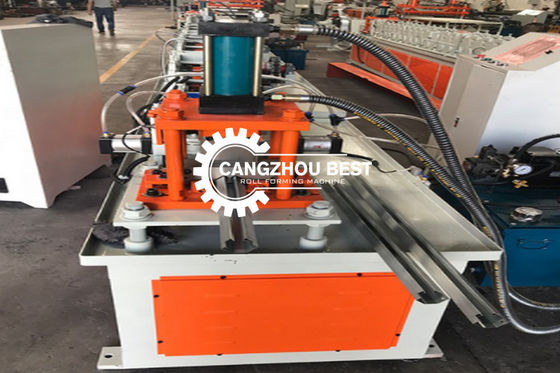

Hydraulic Cutting
1. The cutter blade material: Cr12mov HRC58-62 degree
2. Blades number: 2 sets
3. Cutting after forming: Cut the sheet after roll forming to required length
4. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
5. Material of blade: CR12with heat treatment
6. Length measuring: Automatic length measuring
7. Tolerance of length: 6m+/- 0.5mm
Control Box
(1)Power supply: 380 V, 50 Hz, 3Phase (adjusted with the requirement)
(2)Length & quantity measurement automatically;
(3)Length & quantity controlled by PLC,
(4)Length inaccuracy can be amended easily.
(6).Control panel: Button-type switch and touch screen
(7)Unit of length: millimeter (switched on the control panel)
Output Table
Length : 2m
Quantity: 2 units
