Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | 5T |

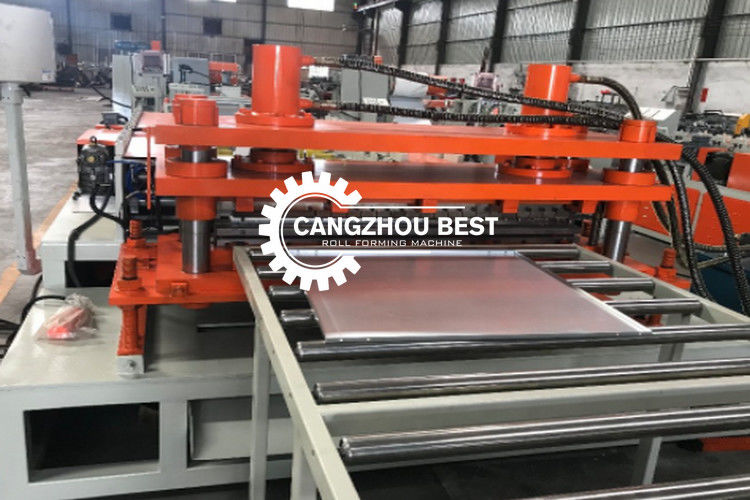

| Use: | Roller Shutter Door Roll Forming Machine | Tile Type: | Colored Glaze Steel |
| High Light: | rolling shutter door forming machine,5.5kw shutter door forming machine,automatic shutter door forming machine |
||
>>Main Technical Parameters
1. Forming material: color steel, aluminum
2. Working speed: 8-10m/min
3. Forming stand: 25 stations
4. Main power: 5.5KW
5. Cutting: tracking flying saw
6. Power of flying saw: 2.2KW
7. Material of roller: No 45 steel (some roller is Cr12 with quenching) with coated chrome
8. Material of main shaft: No 45 steel with thermal refining
9. Main shaft diameter: φ65mm
10. Driven: chain
11. Control system: The whole machine is controlled by industry computer-PLC (Mitsubishi), length tolerance ≤2mm
Working flow:
Decoiler-----feeding------roll forming ------ punching-----cutting----output table
Machine components:
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Punching device | 1Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Output table | 1 Set |
Technical Parameters
| Material specification | Galvanized and pre-painted galvanized steel. |
| Thickness | 0.3 mm to 0.7mm. |
| Main motor power | 5.5 kw. |
| Hydraulic station power | 3 kw. |
| Feeding width | 124mm. |
| Cover width | 60mm. |
| Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
| Roll forming Speed | 12 m/minute. |
| Cutting Tolerance | ±2mm |
| Manual Uncoiler | Max. Capacity: 5000kgs. |
| Voltage | As per customer’s request. |
| Numbers of stands | 11 stands/stations/pairs. |
| Roller material | 5# steel polished and coated with chrome HRC55-60° |
| Shaft diameter | 70mm |
| Shaft diameter | high grade No.45 steel after treatment |
| Type of cutting | Roll-formed and length-set profile cutting. |
Specifications
| Condition | New |
| Use | Roof |
| Brand Name | Chaoyi |
| Voltage | 380V 50Hz 3phases |
| Warranty | One year |
| Roller | 14 roller |
| Type | Tile Forming Machine |
| Production Capacity | 8-12m/min |
| Model Number | Chaoyi--Large-size car panel |
| Dimension(L*W*H) | 11000mm*1200mm*1300mm |
| Base | 350H steel |
| Dimater of shaft | 90mm |
| Roller material | High grade 45# Steel, quenching and tempering treatment |
| Cutting type | Hydraulic cutting type |
| Cutting blade | Cr12 |
| Tile Type | Steel |
| Power(W) | 15KW |
| Weight | 8-9T |
| Color | As your request |
| Material thickness | 1.0-2.0mm or As your request |
| Material width | 1000mm or As your request |
| Transmission type | Chain transmission+deceleration motor |
| Automation | Full-automatic |
| Control system | PLC |
| Place of Origin | Hebei, China (Mainland) |
| After-sales Service Provided | Engineers available to service machinery overseas |
| ( 1) The general machine parameter | |
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 1.0~2.0 mm |
| Frame design | Wall-plate-frame-design/Strong-stand-frame-design |
| Roll stages | 14stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main motor power | 7.5kw Frequency speed control |
| Max. Line speed of roll former | 12m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 4KW |
| Material of cutting blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 7650mm×1350mm×1670mm (estimated only) |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer’s requirements |
| (2) PLC Control system | |
| PLC | Siemens brand (ABB brand is available if required) |
| Touch Screen | Siemens brand (ABB brand is available if required) |
| Inverter | Schneider brand (ABB brand is available if required) |
| Encoder | Omron brand |
| (3) Product rack | |
| Description | un-powered, 6 meters length |
|
(4) Option: 1. Hydraulic pre-shearing device 2. CE certificate Pl refer to the attached pictures for details |
|
| (5) Service after sell | |
|
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements. Installation: (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation. (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians. a) Position the machine in the buyer’s factory. b) Prepare necessary electric wiring. c) Prepare material of trial running. d) Provide labors for assistance and installation during installation. e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly. |
|
