Product Details:
|
| Product Name: | Roman Tile&Corrugated Steel Profile Roofing Sheet Double Layer Roll Forming Machine | Warranty: | 2 Years |
|---|---|---|---|
| Machine Speed: | 4-6m/min | Material Thickness: | 0.3-0.8mm |
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | ||
| High Light: | roman tile roll forming machine,6m/min tile roll forming machine,Chain tile roll forming machine |
||

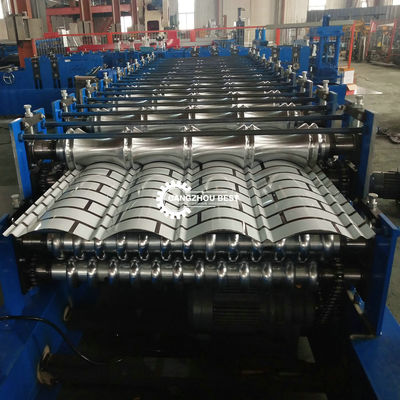

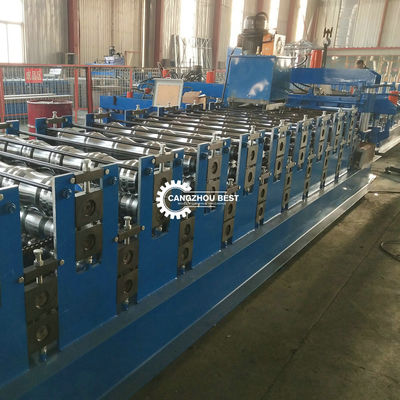

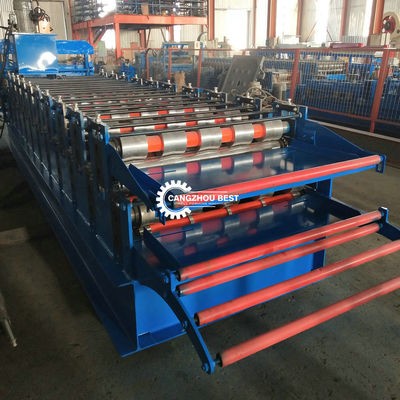

Roman Tile&Corrugated Steel Profile Roofing Sheet Double Layer Roll Forming Machine
Technology parameters:
The weight of machine is about3.1tons.The total dimension of machine:6800(L)*1200(W)*1500mm(H)
Manual decoiler:
Capacity of uncoiler:5tons
Expansion of segment:Manual
Rotation of segment:Manual
Number of segment:4
Range of segment expansion:480-520mm
Operation method:Manual
Qty: 1
Main forming machine:
Coil thickness:0.25-0.7mm
motor type: 3 phase asynchronous motor
Main motor power:4kw+3kw(normal speed),
Approx.13groups roller including
Roller : S45C with quenching treatment,Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
Shaft:Diameter of max shaft: ø70mm(hardening and tempering)
Transmission type:by one inch chain
Qty: 1

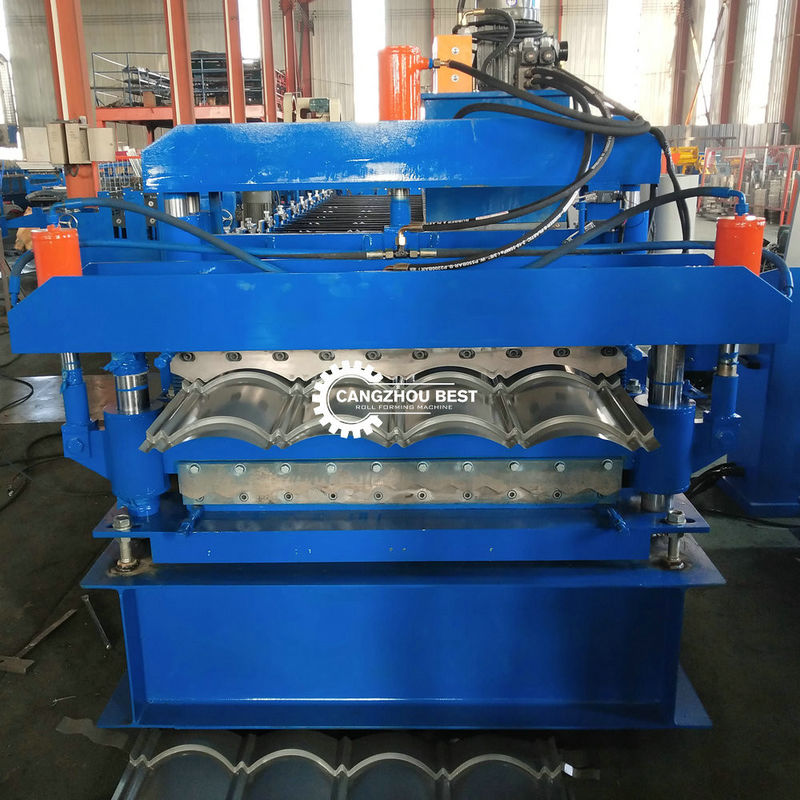

Hydraulic cutting:
Material of blade: Cr12Mov,HRC58-62
Length measuring: Automatic encoder length measuring
Type of cutting:Cutting after forming:Cut the sheet after roll forming to required length.No need to change mold for different sizes
Cutting motion:The main machine automatically stops and the cutting will take place.After the cutting,the main machine will automatically start.
Component
| 1 | Manual uncoiler | 1 set |
| 2 | Sheet guiding equipment | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Pressing device | 1 set |
| 5 | Post-cutting equipment | 1 set |
| 6 | Hydraulic station | 1 set |
| 7 | Electric controlling system | 1 set |
| 8 | Support table | 2 pieces |
Sales Service
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 35 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
WHY CHOOSE OUR COMPANY?
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3)Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
We are Gold supplier with BV assessment and CE certificate.
4)Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period ,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address we have rich experience in transport.
