Product Details:
|
| Product Name: | 380v Roofing Sheet Double Layer Wholesale Roll Forming Machine Customized | Warranty: | 2 Years |
|---|---|---|---|
| Main Motor Power: | 3kw | Material Thickness: | 0.3-0.8mm |
| Shaft Material: | 45# Steel | Control System: | PLC |
| Hydraulic Pump Power: | 5.5kw | Place Of Origin: | Hebei, China |
| Operate Style: | Automatic | Tile Type: | Color Steel |
| High Light: | 380v double roll forming machine,380v double layer forming machine,double roll forming machine customized |
||
380v Roofing Sheet Double Layer Wholesale Roll Forming Machine Customized
Product profile:
As a professional manufacturer,we can make Metal Roof Tile Making Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet mnaking machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.
Specification:
A.General details
| Suitable Material | HRB60 or equivalent(PPGI/PPGL/GI/GL) |
| Materials thickness | 0.3mm-0.8mm |
| Dimension | About 7.2*1.3*1.1m(L*W*H) , as per the drawing |
|
Length of the Sheet |
can set the length according to your infact need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting |
Automatically stop and cutting when it comes to the set length. |
B.Components Details
| NO. | |||
|
1. |
Raw material |
Type | GI&PPGI |
| Thickness | 0.3-0.8mm | ||
| Yield strength | 235Mpa TO 350Mpa | ||
|
2. |
Decoiler |
Operation | Manual/Hydraulic for option |
| Weight apacity | 5tons | ||
|
3. |
Main body |
Roller station | 12 stations |
| Diameter of shaft | 70mm | ||
| Material of rollers | 45# steel with chrome 0.05mm | ||
| Material of shaft | 45# steel with chrome 0.05mm | ||
| Frame | 350mm H-Beam | ||
| Chain | 1inch | ||
|
4. |
Cutter |
Operate | Automatic hydraulic type |
| Blade Material | Cr12MOV | ||
|
5. |
Power |
Pump motor for cutter | 4kw |
| Main motor | 5.5kw | ||
| Voltage | 380V 50HZ | ||
|
6. |
Control system |
Electric Box | PLC control system, Inverter, encoder |
| Language | English | ||
| 7. | Speed | 8-12m/min | |
C.Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate.Brand Delta or based on your need |
| PLC |
Delta Brand (Or Panasonic /Siemens ) Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
| Frequency Converter |
Sanjing ; It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. It features with high accuracy and stability. |
Roller press is designed according to the principle of bed grinding, its main features are: high pressure, full speed, full material, bed crushing. The roller press is composed of two extrusion rolls, one is fixed roll, the other is movable roll.
The common roller press is composed of frame, two roller systems, transmission device, torque support, roller cover, feeding device, hydraulic (pressure) system, main bearing lubrication system, dry oil lubrication system, electrical system, roll removal device, etc. In addition to the main parts and devices of the ordinary roller press, the precision roller press adds the device to ensure the calendering accuracy.
Terms:
1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.
2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .
3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100 per day.
4.Warranty: 18 months
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.

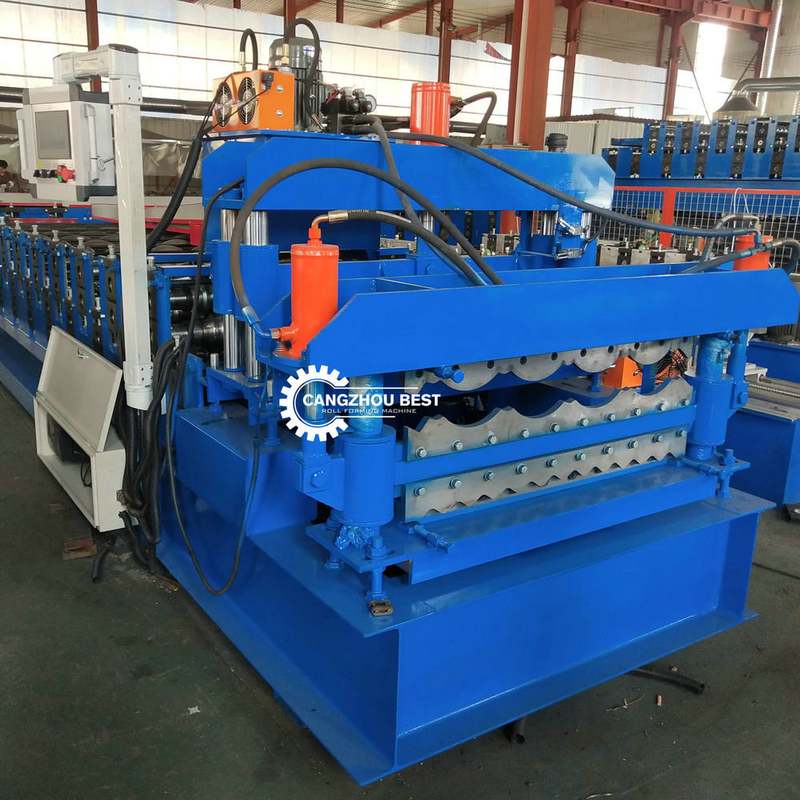

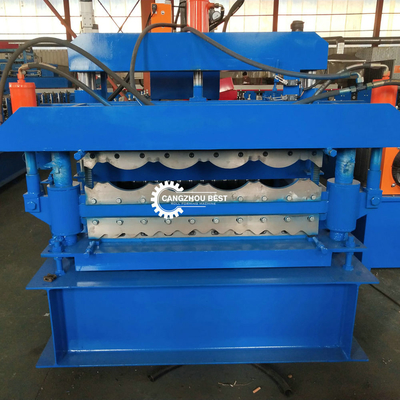

Photos
