Product Details:
|
| Product Name: | Peru Popuar Profile Tr4&Corrugated Double Layer Roofing Sheet Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | ||
| High Light: | plc roofing sheet roll forming machine,12m/min roofing sheet roll forming machine,plc double layer roll forming machine |
||

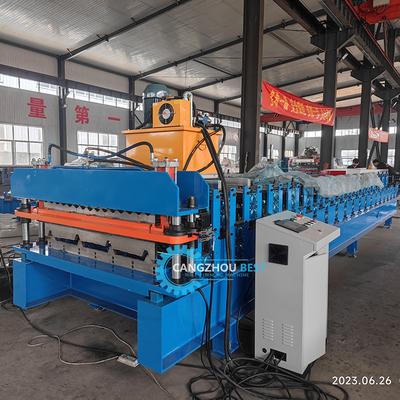

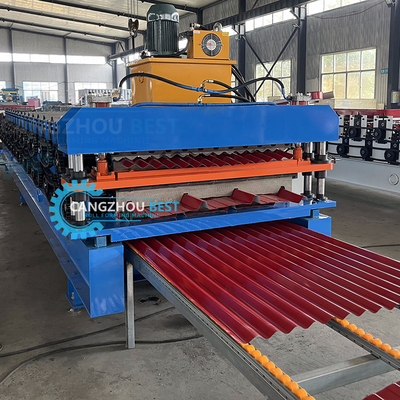

Peru Popuar Profile Tr4&Corrugated Double Layer Roofing Sheet Roll Forming Machine
Machine Component
|
No.
|
Name
|
Amount(set)
|
|
1
|
Passive de-coiler
|
1
|
|
2
|
Roll forming machine
|
1
|
|
3
|
Hydraulic cutting blade
|
1
|
|
4
|
Hydraulic station
|
1
|
|
5
|
Computer control counter
|
1
|
|
6
|
Run out table
|
2
|
Working Flow:
Passively De-Coiling → Guiding & Feeding Material → Roll Forming → Cutting-to-Length → Output Panel.
Specifications:
5T Manual Decolier For Free
Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar. The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine
Feeding Device
1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

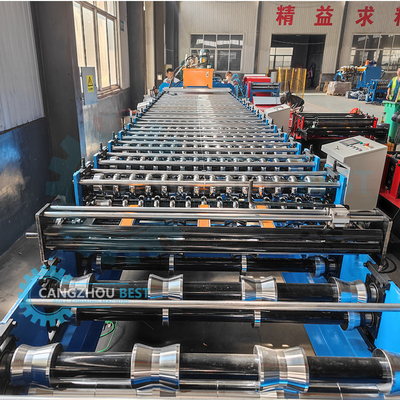

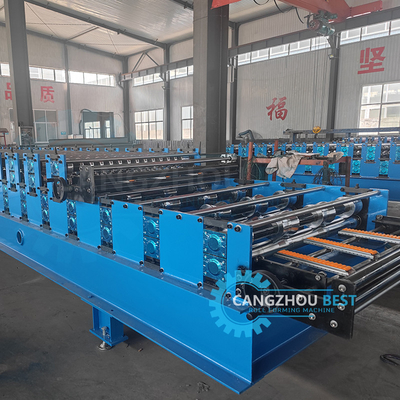

Roll Forming And Transmission Device
1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely 3.gear and double chain,stable
Hydraulic Cutting Device
We use four pillars cutting system structure, it can make sure the cutting stable
PLC control system
PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
Hydraulic station
● Hydraulic station motor:5.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
