Product Details:
|
Name: | Gear Box Transmission IBR Profile Roof Sheet Roll Forming Machine For Romania | Color: | As Your Require |
---|---|---|---|
Material: | PPGI GI | Shaft: | 70mm |
Voltage: | 380V/50HZ/3 PHASE | Warranty: | 2 Year |
High Light: | 3 phase profile roll forming machine,ibr profile roll forming machine,gear box transmission ibr making machine |

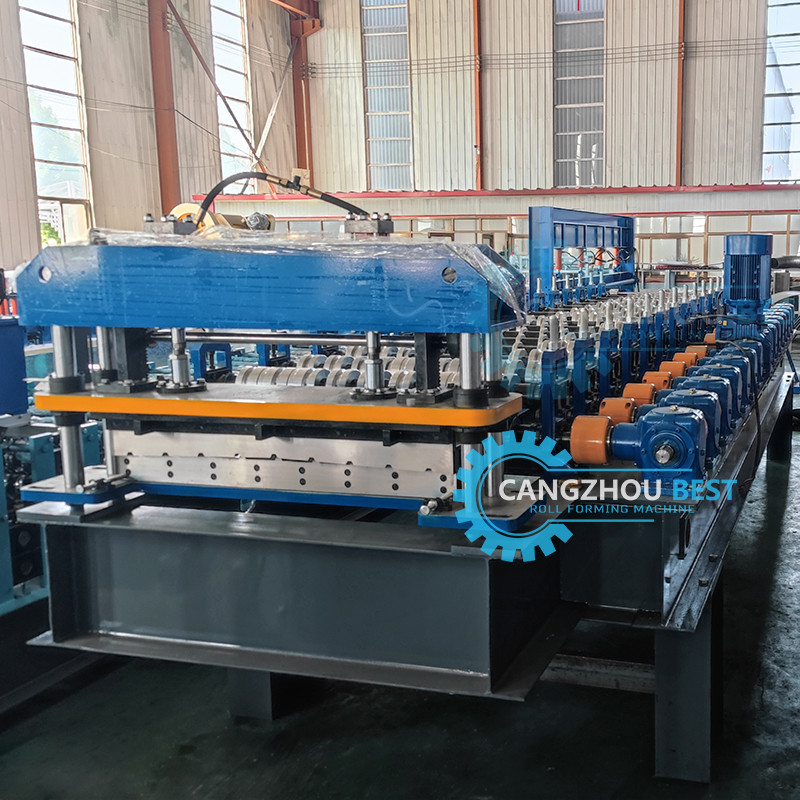

Gear Box Transmission IBR Profile Roof Sheet Roll Forming Machine for Romania
1. Main structure
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency
Processing material | colored steel coils, galvanized coils, or aluminum coils |
Material thickness | 0.3- 0.8 mm |
Coil width | 1500mm(or customized) |
Forming speed | 0-35m/min or as your requests |
Length of the main part | About 8500*1650*1500mm |
Weight of main part | About 9 t |
Voltage | 380V/50HZ3Phase (as customer`s request) |
Roller fixer | Middle plate welded |
Frame | 350 H steel welded |
Frame thickness | 25mm |
Drive mode | Chain |
Material of rollers | 45# steel, surface hard chromium plating. |
Number of rollers |
Up layer: 13 rollers Down layer: 15 rollers |
Main power | 5.5kw |
cutting | Gcr12 quenched with good hardness |
Hydraulic station | 4.5kw with cooling fan for long time using |
PLC control cabinet | Use good brand Delta |
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Machine Specifications
Decoiler
(1) Max. Width: 1000 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1000 mm
(4) Max. Loading Capacity: 5000 kgs

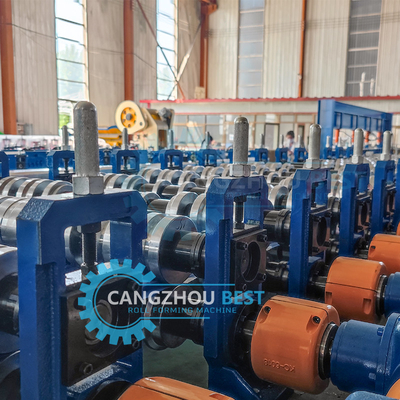

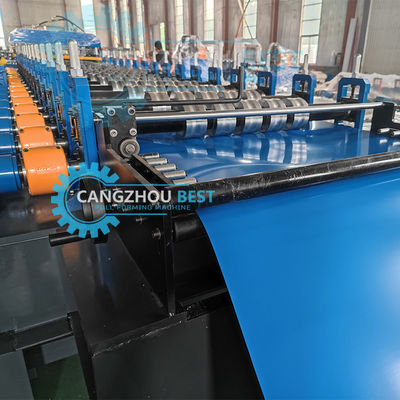

Roll Forming Machine
Material Thickness: 0.3-0.8mm PPGI and GI
Roller Stations:up16groups down20groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 5.5kw
Diameter of shaft: 70mm
Shaft Material: 45# steel
Driven type: 1.0"Chain

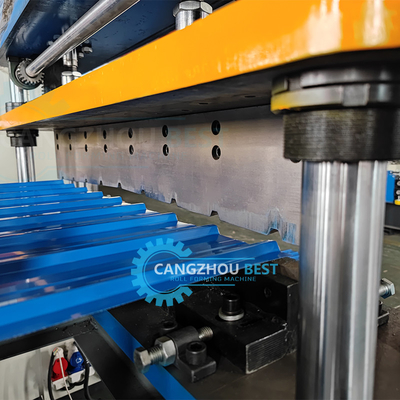

Cutting Device
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW
PLC Control Box
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3)Length Error: ±2mm
(4)Language: English and Chinese
(5)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.
2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .
3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.
4.Warranty: 18months
During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.
