Product Details:
|
| Product Name: | Trapezoidal Corrugated Two Profiles Double Layer Roll Forming Machine GI Sheet | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Bottom Frame: | 360H Steel |
| Balde Material: | Cr12 Steel | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | metal roofing equipment,metal sheet roof roll forming machine |
||
2 Layer GI Roofing Sheet Roll Forming Machine Trapezoidal Corrugated Two Profiles
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo |  |
|
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |
roll forming
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 10
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9)Driven type: 0.6＂Chain
Cutting
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |

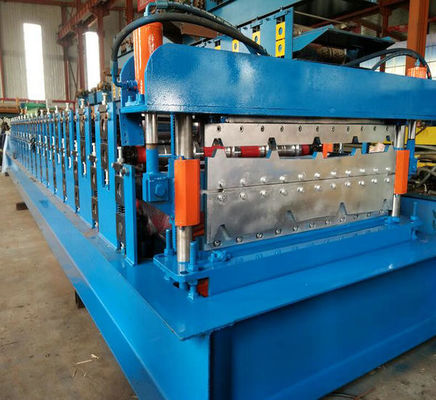

Machine Photo
Packing & Loading Photo
Advantages
1.We are factory and located in Shanghai,China,offer best quality machines
2. Customers Design ,Size,Color&Logo are accepted.
3. With20 years professional manufacture experience
4. Prompt Delivery&Competitive Price
5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 60days after receiving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things
Contact Person: Mr. Arno Hao
Tel: +8618717894416
