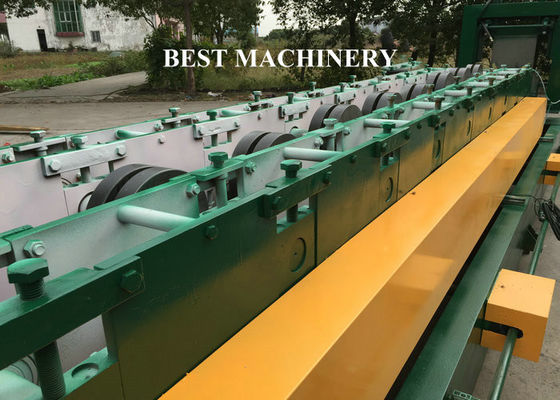

15 Roller Stations U Channel Purlin Roll Forming Machine with Auto Punching Holes

15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes
15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes

Large Image :  15 Roller Stations U Channel Purlin Roll Forming Machine with Auto Punching Holes

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

15 Roller Stations U Channel Purlin Roll Forming Machine with Auto Punching Holes

Description
Product Name: 15 Roller Stations U Channel Post Roll Forming Machine With Auto Punching Holes Machine Dimention: 7.5mx1.8mx1.4m
Shaft Material: 45#steel Punching Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
Bottom Frame: 400 H Steel
High Light:

channel roll forming machine

,

c channel roll forming machine



15 Roller Stations U Channel Purlin Roll Forming Machine with Auto Punching Holes



Advantage:One machine can produce  C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.


Working flow


Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 0

Machine Component



De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set


Decoiler


Type Manual type(standard) Hydraulic type(option)
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm


roll forming machine



Item Parameter detail
Processing Material GI and Black Coils
Material thickness 1-3mm(standard), 3-5mm(customized)
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Forming stations 15 stations (according to the material thickness)
Machine rollers

high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision and wire-electrode cutting
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 7.5kw-22kw(according to the size and thickness)
Machine working speed without punching:8-12m/min or 10-30m/min(option)
Machine testing method After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm
Machine Photo


Punching device



Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa


Cutting device



Type

Mlmight Cutting which can cut C Z U purlin




Blade material Cr12mov quenching and grinding
Blade processing wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working Hydraulic type


Stacker



Type

Manual
15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 1

Auto(option)
15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 2

Length 2pieces, length is adjustable according to your requirement



PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request
15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 315 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 4

Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase



Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request
15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 5

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
15 Roller Stations U Channel  Purlin Roll Forming Machine with Auto Punching Holes 6
