Product Details:
|
Product Name: | Round Shape Rainspout Downspout Roll Forming Machine 0.5mm Material PPGI And GI Steel | Cutting Type: | Mould Cutting Or Saw Cutting |
---|---|---|---|
Machine Speed: | 8-12m/min | Machine Dimention: | 9mx1.4mx1.4m |
Control System: | PLC | Warranty: | 2 Years |
Life Time: | More Than 10 Years | ||
High Light: | downspout roll forming machine,pipe roll forming machine |

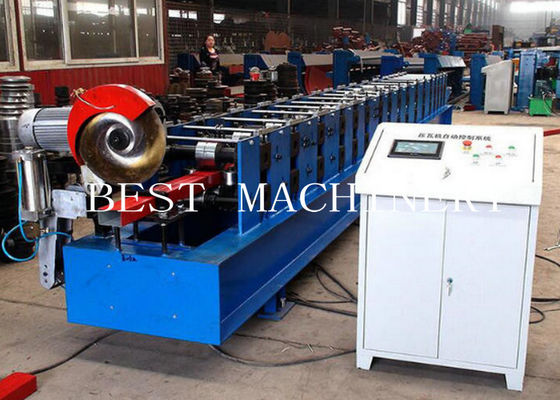

Round Shape Rainspout Downspout Roll Forming Machine 0.5mm Material PPGI and GI Steel
Application
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Working flow
Decoiler----feeding----roll forming----cut to length----output table
Machine components
No. | Name | Qty |
1. | De-coiler | 1 Set |
2. | Roll Forming Machine | 1 Set |
3. | Hydraulic Cutting Device | 1 Set |
4. | PLC Control Box | 1 Set |
5. | Hydraulic Pump | 1 Set |
6. | Output table | 1 Set |
Decoiler
Type | Manual type(standard) | Hydraulic type(option) |
Width | 500mm | 600mm |
Capacity | Max 5tons | From 5-15 tons |
Inner diameter | φ450-550mm | φ450-550mm |
Outer diameter | φ1500mm | φ1800mm |
roll forming
1. Suitable to process: Color steel plate
2. Width of the plate: 333mm
3. Rollers: 18 rows
4. Dimensions: 8.2*1.35*1.51m
5. Power: 5.5+3kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.4-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Control system: PLC control
Cutting
Type |
Mould type |
Blade material | Cr12mov quenching and grinding |
Frame processing |
the whole bottom frame is grinding for high-precision |
Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
Working | Hydraulic type |
Stacker
Type |
Manual |
Auto(option) |
Length | 2 pieces | 6m or 12m |
PLC
Main item | Parameter detail |
PLC |
Delta(standard) or according to your request |
Inverter | China brand(standard) or according to your request |
Touch screen | Mcgs(standard) or according to your request |
Encoder | China brand(standard) or according to your request |
Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Main Item | Parameter detail |
Motor |
3kw China brand or according to your request |
Pump | China brand or according to your request |
Solenoid valve | China brand or according to your request |
Cooling system |
Cooling fan |
