Portabe Eblow Water Channel Pipe Roll Forming Machine Hydraulic Mould Cutting

Description

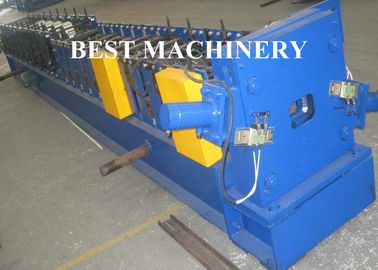

Product Name: Portabe Eblow Water Channel Pipe Roll Forming Machine Hydraulic Mould Cutting Machine Speed: 8-12m/min
Machine Dimention: 9mx1.4mx1.4m Control System: PLC
Warranty: 2 Years Life Time: More Than 10 Years
Material: PPGI/ GI Botttom Frame: 360H Steel
High Light:

downspout roll forming machine

,

pipe roll forming machine



Portabe Eblow Water Channel Pipe Roll Forming Machine Hydraulic Mould Cutting


Application

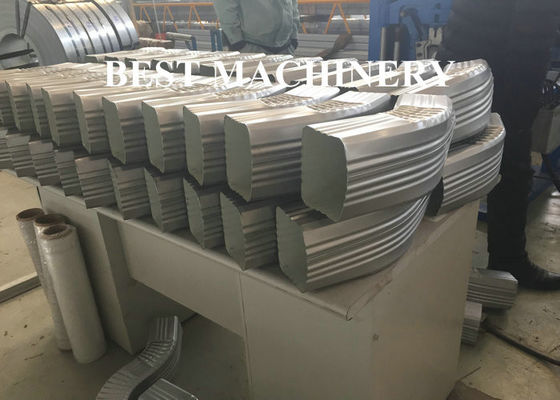

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.

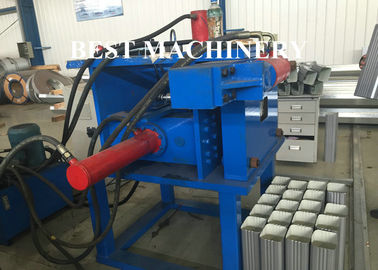

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

Working flow

Decoiler----feeding----roll forming----cut to length----output table


Machine components



De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Pressing die---------------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set



Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm

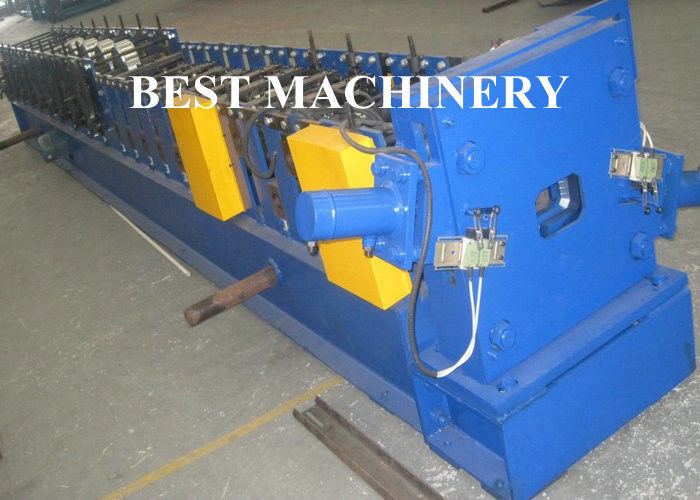

roll forming

1. Suitable to process: Color steel plate
2. Width of the plate: 333mm
3. Rollers: 18 rows
4. Dimensions: 8.2*1.35*1.51m
5. Power: 5.5+3kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.4-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Control system: PLC control

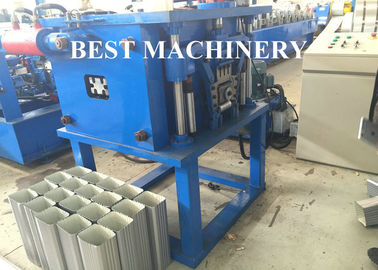

Cutting


Type

Mould type


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type


Stacker


Type

Manual

 Auto(option)

Length 2 pieces 6m or 12m


PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request

Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase


Hydraulic pump



It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.



Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
