Hydraulic Type Cruve Grill Rolling Shutter Door Roll Forming Machine PLC Control

Description
Product Name: Hydraulic Cutting Grill Rolling Shutter Door Roll Forming Machine PLC Control Usage: Floding Door
Power: 5.5+3kw Machine Dimention: 5.5mx1mx1.4m
Warranty: 2years Driven System: Chain Or Gear Box
Life Time: More Than 10 Years
High Light:

metal roll forming machine

,

profile roll forming machine



Hydraulic Cutting Grill Rolling Shutter Door Roll Forming Machine PLC Control



Working flow


Decoiler---------feeding--------roll forming--------cut to length--------multi revising-----output table


Machine components


De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device-----------------------------------1set

Multi revising device---------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set


Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 300mm 500mm
Capacity From 3-5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm



roll forming


Length of the main part: according to the drawing

Weight of main part: 3 tons

Voltage : 380V 50HZ 3Phase

Roller fixer : Guide column

Frame :360 H steel welding

Drive mode: chain

Material of rollers:45# steel surface with chrome, heat treatment, process with CNC

Material of shafts: 45# steel with tempering

Diameter of shafts: φ70mm

Number of rollers : 14 rollers

Main power: 5.5kw(cycloidal planetary gear speed reducer)

Hydraulic power : 3kw



Cutting


Type

Mould cutting type

Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type



Stacker


Type

Manual

 Auto(option)

Length 1.5m-2m 6m or 12m



PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase



Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan



Machine Photos

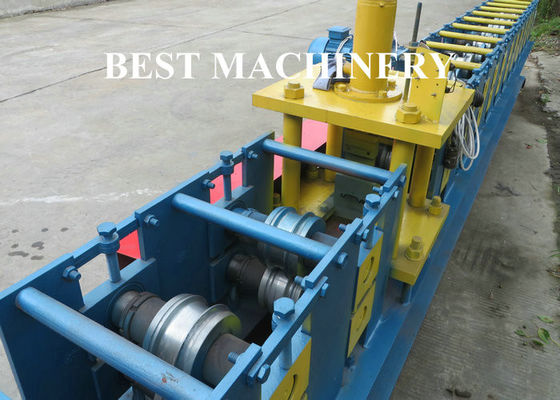

Hydraulic Type Cruve Grill Rolling Shutter Door Roll Forming Machine PLC Control 0

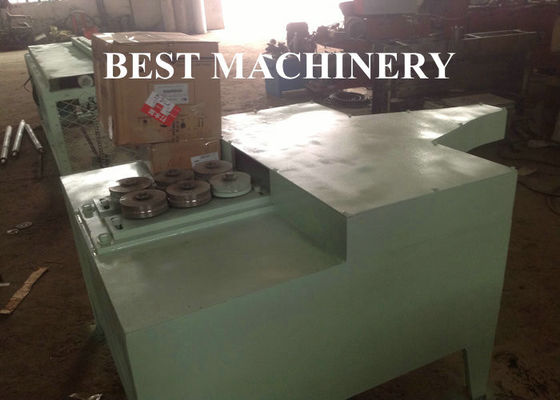

Hydraulic Type Cruve Grill Rolling Shutter Door Roll Forming Machine PLC Control 1
